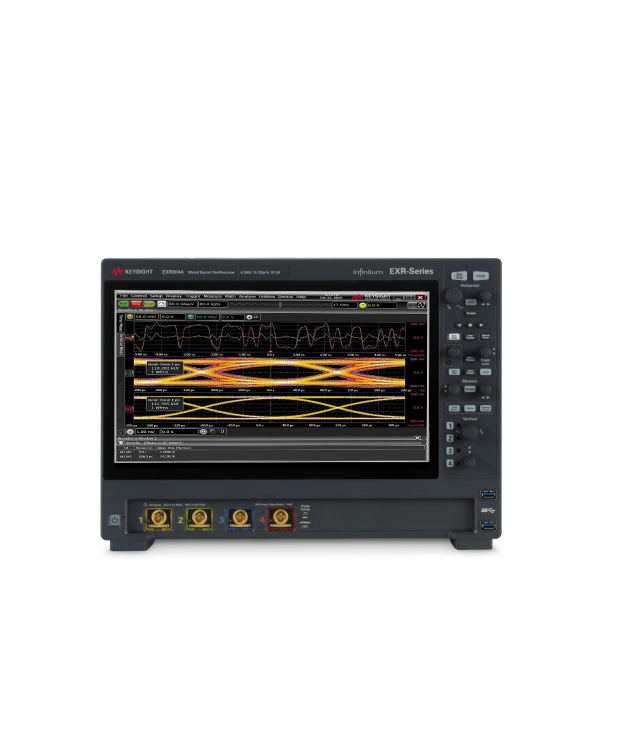

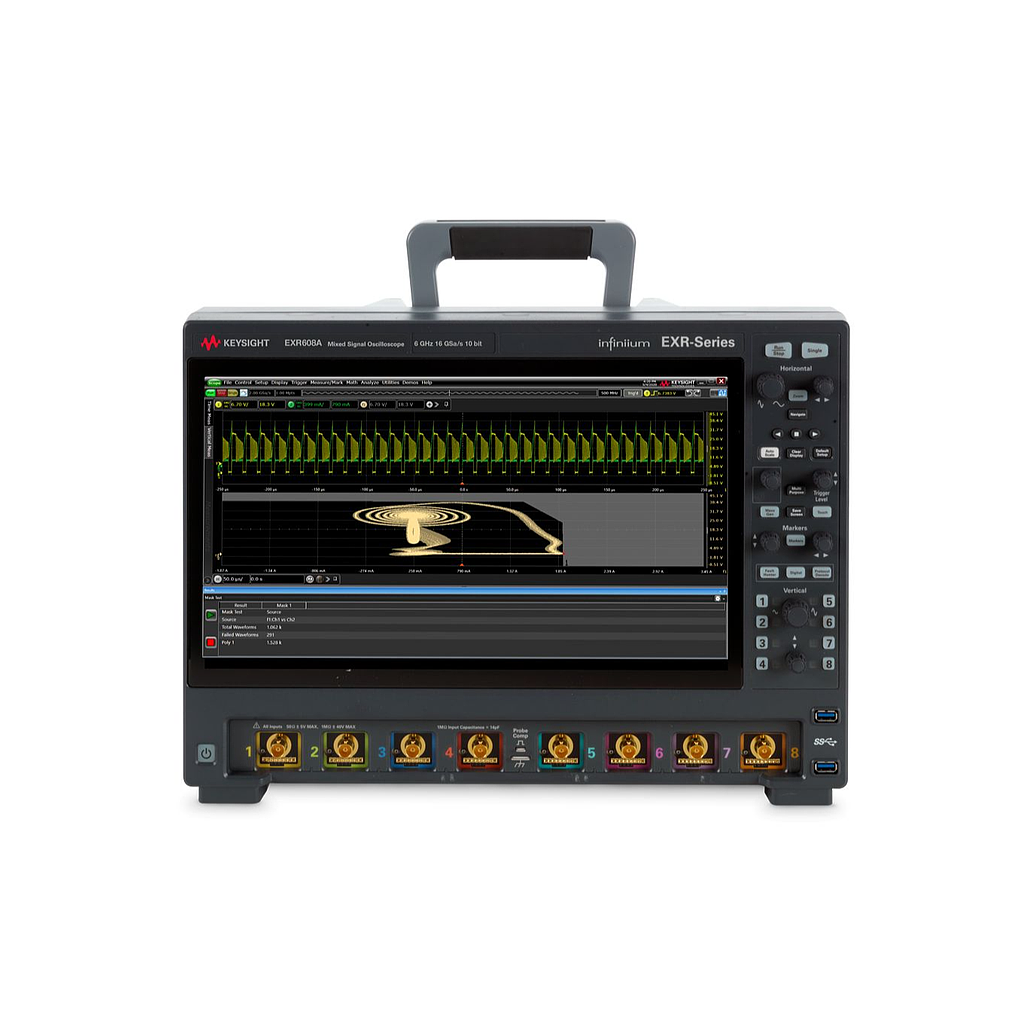

Bandwidth (-3 db): 6 GHz
Input channels: 8 channels analog BNC
Sample rate, real-time: 16 GSa/s, all analog channels 1
Sample resolution: 62.5 ps (divide by interpolation factor, if enabled)
Vertical resolution: 10 bits, up to 16 bits with high-resolution mode
Real-time update rate: > 200,000 waveforms/sec
Memory depth:
Standard: 100 Mpts/channel, all channels
Optional: 400 Mpts/channel, all channels (400 Mpts/ch option)
1.6 Gpts shared between channels 1-4, 5-8 (1.6 Gpts Combined Flexible Memory option)
Input impedance
50 Ω: ± 3.5% (typically ± 1% at 25 °C)
1 MΩ: ± 1% (14 pF typical)
Input sensitivity:
50 Ω: 1 mV/div to 1 V/div
1 MΩ: 1 mV/div to 5 V/div
Input coupling:
50 Ω: DC
1 MΩ: DC, AC (> 11 Hz)
Bandwidth limit filters
Analog: 20 MHz, 200 MHz
Digital: 14.7 MHz up to scope bandwidth, increments of one decimal point. Filter options: Brick Wall, 4th Order Bessel, or Bandpass
Max input voltage
50 Ω: ± 5 VMAX 1
1 MΩ: 30 VRMS or ± 40 VMAX (DC + VPEAK)
Notes: Probing technology allows for testing of higher voltages; the included N2873A 10:1 probe
supports 300 VRMS or ± 400 VMAX (DC + VPEAK). No transient overvoltage allowed in either the
50 Ω or 1 MΩ path, with or without probes.
Offset accuracy: < 2 V: ± 0.1 div ± 2 mV ± 1%; >2 V: ± 0.1 div ± 2 mV ± 1.5%
Dynamic range: ± 4 divisions from center screen
DC gain accuracy: ± 2% full scale (±1% typical)
DC voltage measurement accuracy:
Dual cursor: ± [(DC gain accuracy) + (resolution)]
Single cursor: ± [(DC gain accuracy) + (offset accuracy) + (resolution/2)]
Channel-channel isolation:
Adjacent Channels: ≤ -60 dB (DC to 2 GHz), ≤ -50 dB (2 to 6 GHz)
Non-Adjacent Channels: ≤ -85 dB (DC to 2 GHz), ≤ -65 dB (2 to 6 GHz)
Includes:
KeysightCare Technical Support - 3 years
Return to Keysight Warranty - 3 years.
EXR000-500 Standard 500 GB Removable SSD
EXR000-100 Standard 100 Mpts/ch Memory
