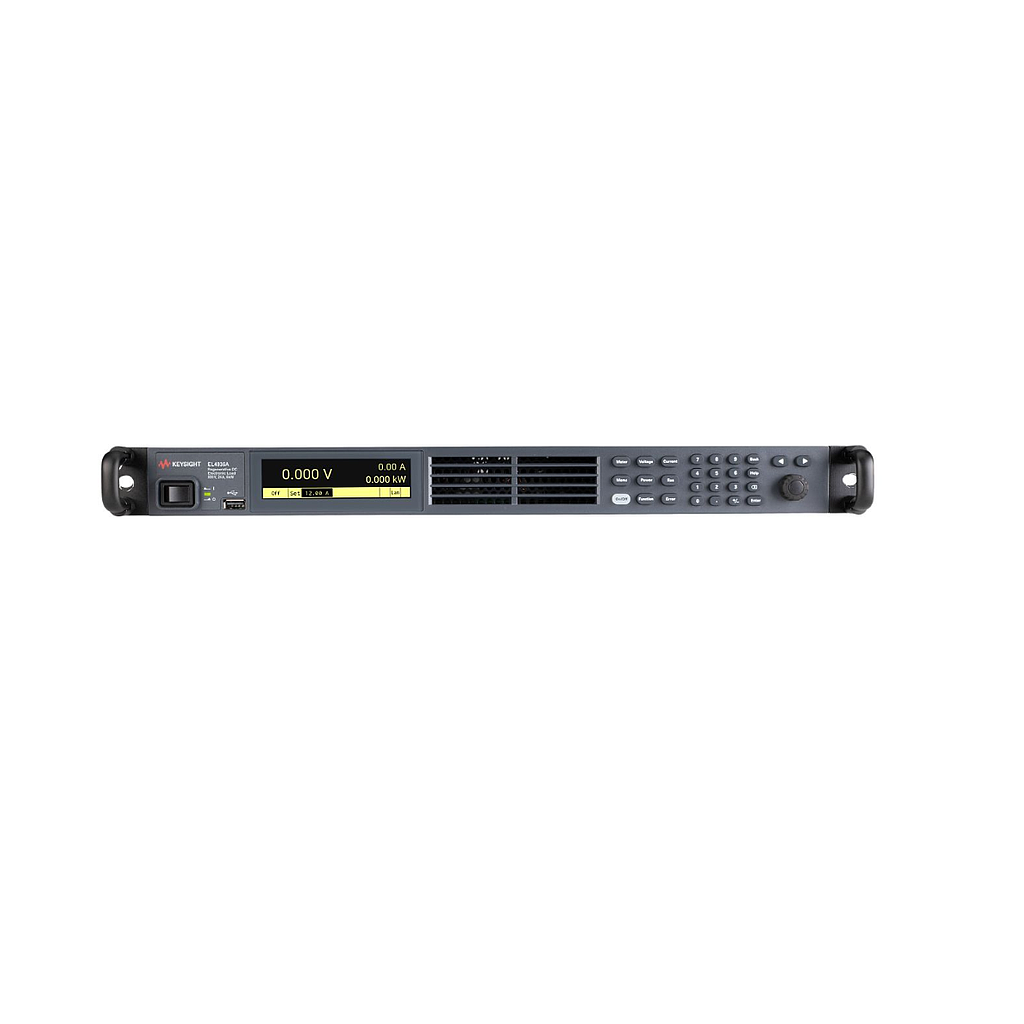

KEYSIGHT EL4936A Regenerative DC Electronic Loads (800V, 24A, 6 kW, 380/480 VAC)

DC Ratings

Voltage 800 V

Current 24 A

Power 6 kW

Programming Accuracy

Voltage 0.03% + 240 mV

Current 0.1% + 24 mA

Resistance 10 mΩ

Power 0.5% + 30 W

Readback Accuracy

Voltage 0.03% + 240 mV

Current 0.1% + 24 mA

Power 0.5% + 30 W

Load Regulation

Voltage ≤ 160 mV

Current ≤ 32 mA.

Constant voltage mode programming and readback:

Range: 0 to 800 V

Resolution: 10 mV

Temperature coefficient: ≤ 30 ppm/°C

Constant current mode programming and readback:

Range: 0 to 24 A

Resolution: 1 mA

Temperature coefficient: ≤ 50 ppm/°C

Constant resistance mode Programming

Load resistance range: 0.15 to 7500 Ω

Resolution: 10 mΩ

Constant power mode programming and readback

Range: 0 to 6 kW

Resolution: 1 W

Maximum slew rate

Rise/Fall slope: 6 kA/s

Line regulation

Voltage: ≤ 160 mV

Current: ≤ 14.4 mA

Protection capability:

Overvoltage: 835 V

Overcurrent: 25.2 A

Overpower: 6120 W

*For detailed specifications, please refer to the Datasheet.
