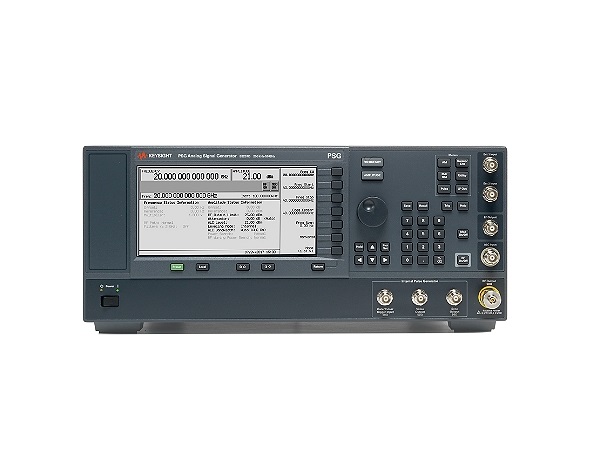

KEYSIGHT E8257D+ E8257D-532 PSG Analog Signal Generator (100kHz~31.8 GHz, option E8257D-532)

• Frequency range (min. to max.): 100 kHz to 31.8 GHz

• Frequency switching (list mode): 9 ms

• Sweep mode: Step, list, ramp

• Output power (at 20 GHz): –135 to +26 dBm

• Level accuracy (at 20 GHz): ± 0.8 dB

• SSB phase noise (at 10 GHz; 10 kHz offset): –126 dBc/Hz

• Harmonics (at 10 GHz): –55 dBc

• Non-harmonics (at 1 GHz): –88 dBc

• AM rate: DC to 100 kHz

• FM deviation (maximum): 1 to 1280 rad

• PM phase deviation (maximum in normal mode): 0.5 to 64 rad

• Narrow pulse width: 20 ns
