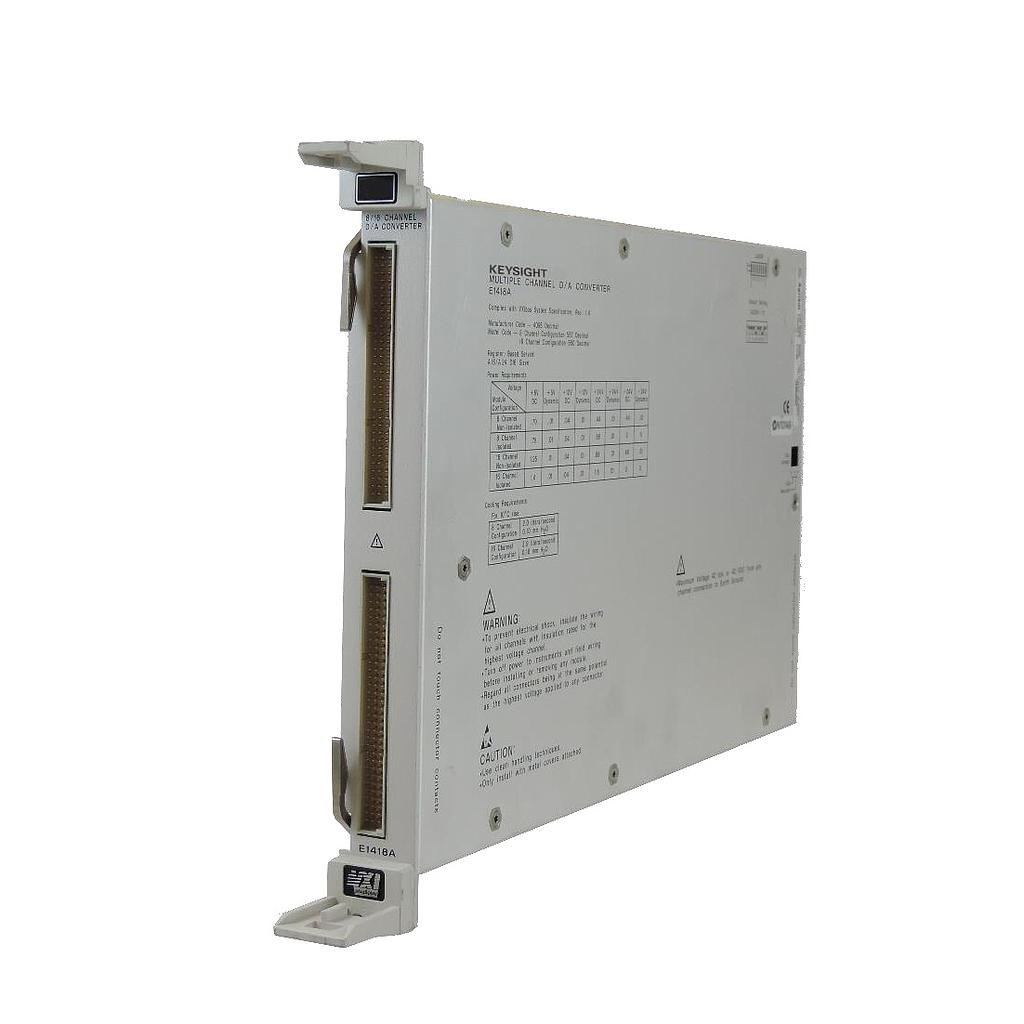

KEYSIGHT E1418A D/A Converter (8/16 Ch, 16-bit, C-Size)

Voltage Mode

Amplitude: ± 16 V

Resolution: 16 bits (488 µV steps) Monotonic to 2.0 mV

DC amplitude accuracy (90 days): ± (0.05% + 3.0 mV) (spec)

Compliance current: >20 mA @ 0 to ± 12 V de-rated linearly to 5 mA @ ± 16 mV

Short circuit current: <60 mA (spec)

Differential ripple and noise: <2 mV rms (20 Hz - 250 kHz, into 10 kΩ load)

Current Mode (typ except where noted)

Range: 0 to ± 20.00 mA

Resolution: 16-bit (610 nA steps) monotonic to 25 µA

Accuracy (90 days): ± (0.09% + 5.0 µA) (spec)

Compliance voltage: ± 12 V (spec)

Maximum open circuit voltage: <18 V

Differential ripple and noise: <2 µA rms (20 Hz - 250 kHz, into 250 Ω load)

Sample rate: 1 kSa/s per channel

Data Transfer: A16 or A24, D16

Size: C

Slots: 1

Connectors: P1/P2

See the datasheet to choose suitable options
