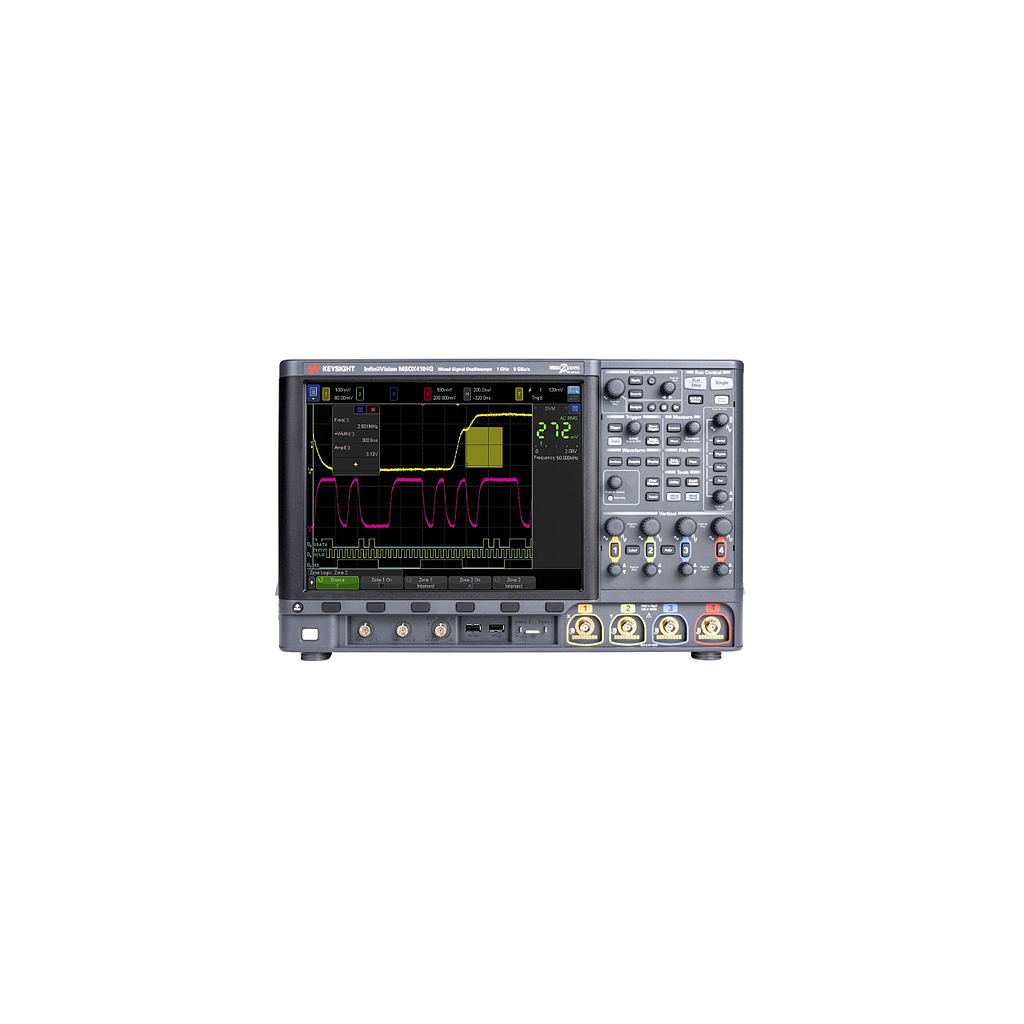

Bandwidth: 500 MHz
Channels: 4
Max sample rate: 5 GSa/s
Memory: 4 Mpts
Display: 12.1-inch capacitive touch display
Update rate: 1,000,000 waveforms per second
Connectivity: USB 2.0 (host x3, device x1), LAN, VGA out, GPIB (option)
Dimensions: (W x H x D) 454 mm x 275 mm x 156 mm
Weight Net: 6.3 kg (13.9 lbs), shipping: 11.4 kg (25 lbs)
WaveGen 20-MHz function/ arbitrary waveform generator: Dual channel AWG
Serial protocol analysis: Yes
