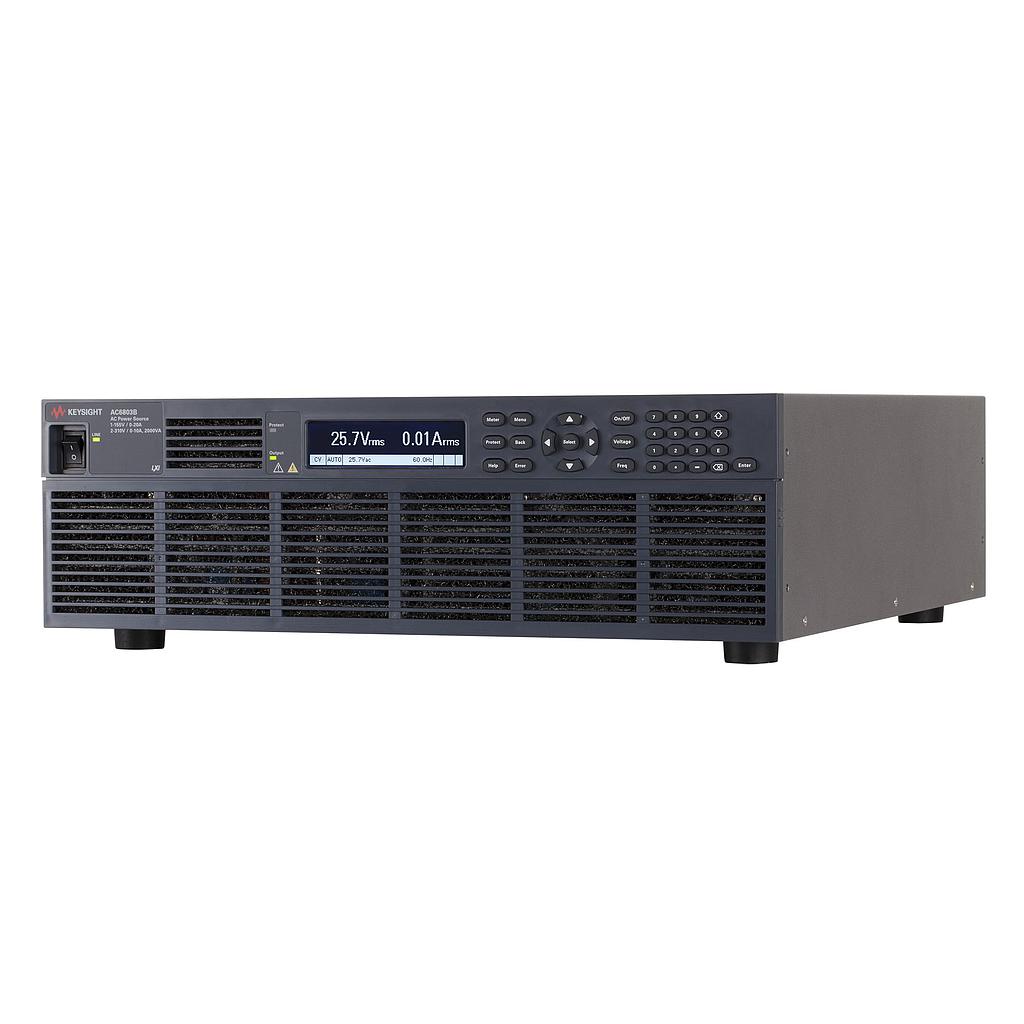

KEYSIGHT AC6803B Basic AC Power Source (2000VA, 310V, 10A, True RMS)

• Phases: Single-phase

• Maximum output Power: 2000 VA

• AC output mode:

Voltage range: 155 Vrms / 310 Vrms

Voltage setting accuracy 0.3%/0.25% full-scale

Maximum rms current: 20 A/10 A

Maximum peak current 60 A/30 A

Frequency 500 Hz

Measurements Voltage, current, power

• DC output mode:

Voltage range: 190 V/380 V

Max current: 16 A/8 A

Maximum instantaneous current: 48 A/24 A

Power capacity: 1600 W

• I/O: LAN/LXI Core and USB; Optional: GPIB
