Frequency range: dc to 26.5 GHz
Life: 5,000,000 cycles minimum
Switching speed: 15 ms maximum
Indicator specifications
Maximum withstand voltage: 60 V
Maximum current capacity: 150 mA
Maximum “ON” resistance: 2.5 Ω
Maximum “OFF” resistance: 10 G Ω
Maximum power rating
Into internal termination: 1 W CW50 W peak, 10 µs max pulse width, not to exceed 1 W average
Into thru path Hot switching: 2 W CW100 W peak, 10 µs max pulse width, not to exceed 2 W average
Environmental specifications
Operating temperature: –25 to 75 °C
Storage temperature: –55 to 85 °C
RFI: Per MIL-STD-461C, RE02, Part 4
Magnetic field: < 5 gauss 1/4 inch from surface
Weight: 229 gm (0.50 lb)
Datasheet
Features

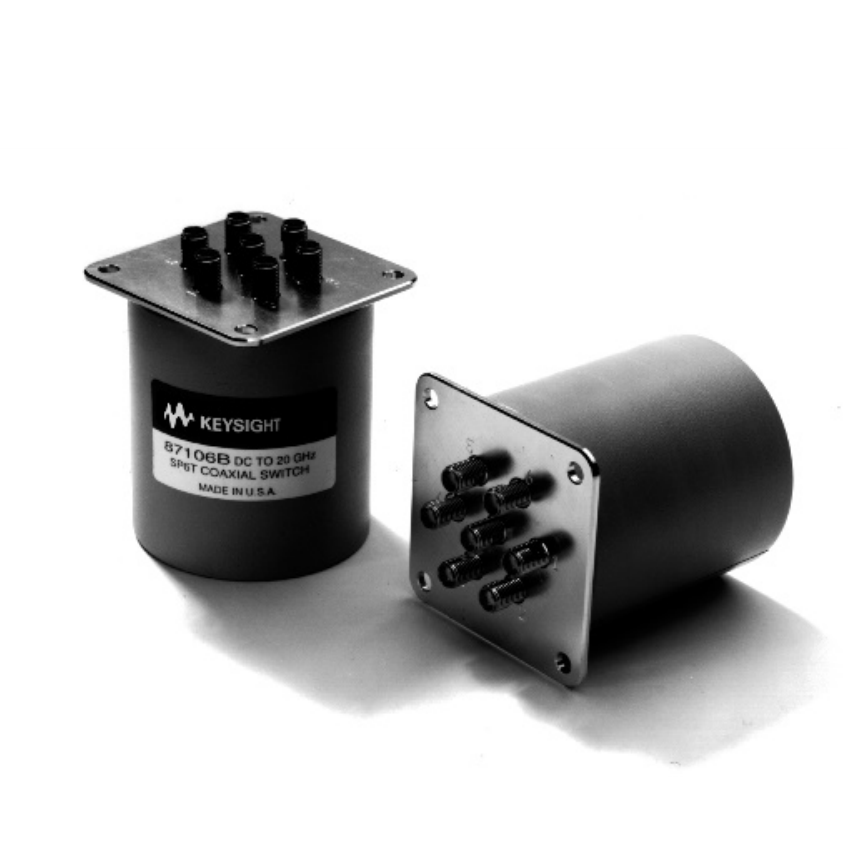

• SP4T and SP6T configuration
• Magnetic latching
• Operating life of 10 million cycles, typical
• Repeatability of 0.03 dB up to 5 million cycles ensures
• accurate system measurements and reduces calibration intervals
• Excellent isolation, typically >90 dB at 26.5 GHz
• Opto-electronic indicators and interrupts
• Terminated ports
• TTL/5 V CMOS compatible (optional)
