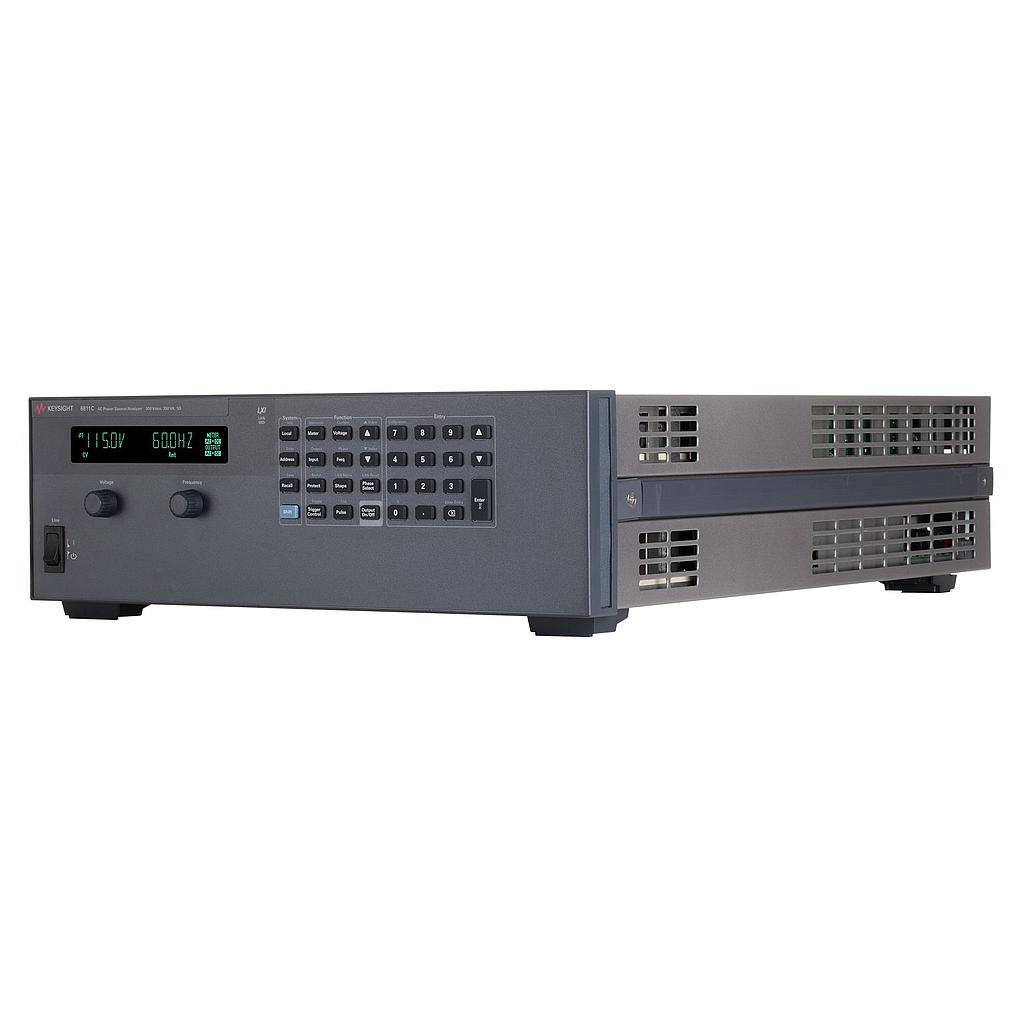

KEYSIGHT 6811C AC Power Source/Analyzer (375VA, 300V, 3.25A)

• Phases: Single-phase

• Maximum output Power: 375 VA

• AC output mode:

Voltage range: 300 Vrms

Voltage setting accuracy: 45 to 100 Hz: 0.15% + 0.3 V; > 100 to 500 Hz: 0.5% + 0.3 V; > 500 to 1000 Hz: 1% + 0.3 V

Maximum rms current: 3.25 A

Maximum peak current: 40 A

Frequency: 1 kHz

Measurements Voltage, current, power

• DC output mode:

Voltage range: 425 VA

Max current: 2.5 A

Maximum instantaneous current: 40 A

Power capacity: 285 W

• I/O: LAN/LXI Core and USB; GPIB
