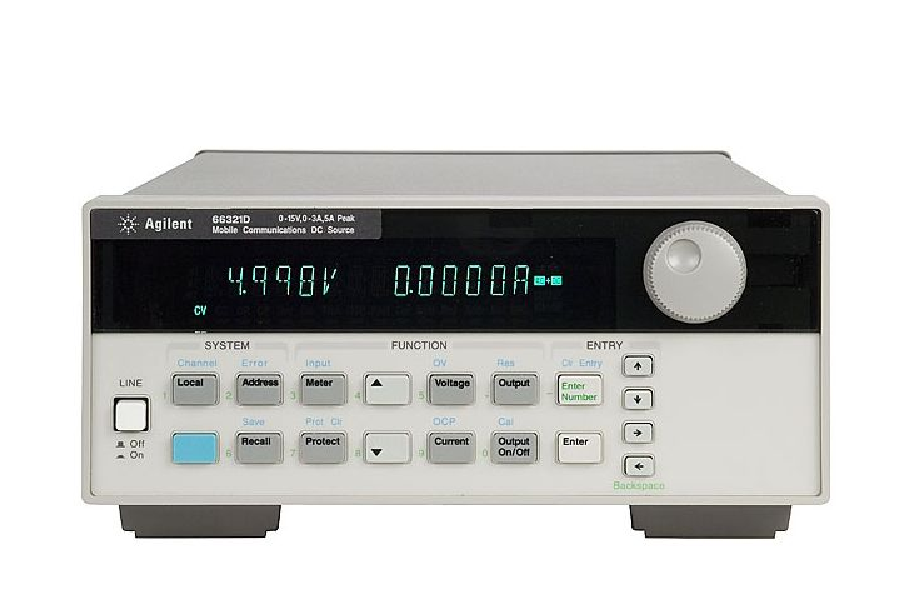

KEYSIGHT 66321D Mobile Comm DC Source w/ Battery Emulation, DVM (single output, 15V, 3A)

Number of output: 1

Output Ratings

Voltage: 0 to 15 V

Current: 0 to 3 A3A

Peak Current for up to 7 ms: 5 A

Programming accuracy at 25°C: ±5°C (% of setting plus fixed)

Voltage: 10 mV

+ Current: 1.33 mA

DC Readback Accuracy

Voltage: 0.03% + 5 mV

Current (-3 A to + 5 A): 0.2% + 0.5 mA

Current (-1 A to + 1 A): 0.1% + 0.2mA

Current (-20 mA to + 20 mA): 0.1% + 2.5 µA

Transient Response

40 mV drop, <20 µs transient response time

Voltmeter input:

Input range: -25 to +25 Vdc

AC + DC readback accuracy (at 25°C ±5°C) with DC plus a sinewave input > 25 mV rms: 1% + 5 mV (60kHz to 10kHz)

Accessories:

E3663AC Support rails for Keysight rack cabinets

14565B Device Characterization with Battery Drain Analysis & Test Automation

14565U Device Characterization Software Upgrade (provides upgrade from 14565A to 14565B Software)
