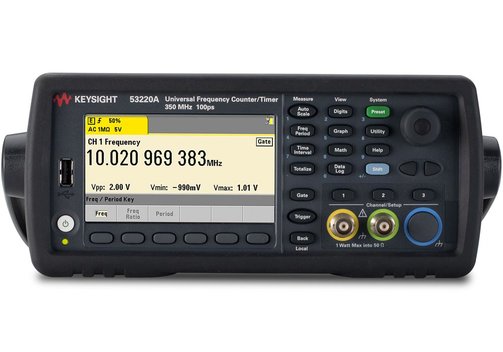

KEYSIGHT 53220A (option 53220A-115) Frequency Counter (3CH, 350Mhz; include option 53220A-115)

• Channels 1 & 2 : DC ~ 350Mhz

• Channel 3: 15 Ghz (Optional : 53220A-115)

• Input impedance: 1 MΩ ± 1.5% or 50 Ω ± 1.5% || <25 pF

• Input filter : Low pass filter

• Input amplitude : ±5 V (±50 V)

• Sensitivity: DC - 100 MHz: 20 mVpk, > 100 MHz: 40 mVpk

• Maximum display number : 15 digits

• Measurement speed : 10 ms to 2000 s

• Interface: USB, GPIB, LXI-C 1.3

• Screen: 4.3" Color TFT WQVGA (480 x 272)

• Dimensions: 261.1 x 103.8 x 303.2 mm, 3.9kg

• Accessories: Power cord, USB cable, User manual

• Customers carefully read the Datasheet to choose the right configuration
