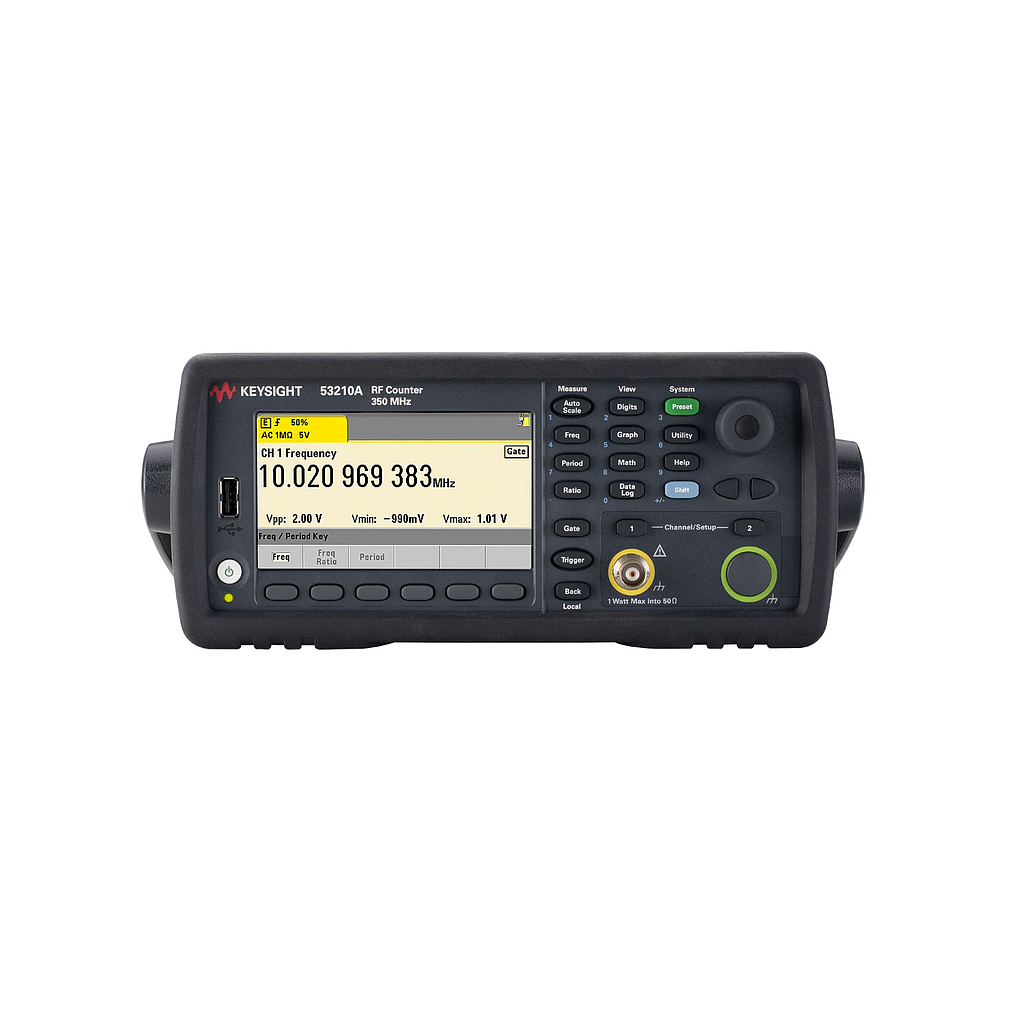

KEYSIGHT 53210A+option R-50C-011-5 RF Frequency Counter

Channel 1 : DC ~ 350Mhz

• Channel 2 : 6Ghz or 15Ghz (Optional)

• Input impedance (typ) : 1 MΩ ± 1.5% or 50 Ω ± 1.5% || <25 pF

• Input filter : low pass filter

• Input amplitude range : ±5 V (±50 V)

• Sensitivity : DC - 100 MHz: 20 mVpk, > 100 MHz: 40 mVpk

• Maximum display Resolution : 12 digits

• Measurement/IO timeout (nom) : 10 ms to 2000 s

• Interfaces : USB, USB, LXI-C 1.3

• Display : 4.3" Color TFT WQVGA (480 x 272)

• Dimensions : 261.1x103.8x303.xmm, 3.9kg

• Accessories : Power line cord, USB cable, manual

Datasheet
