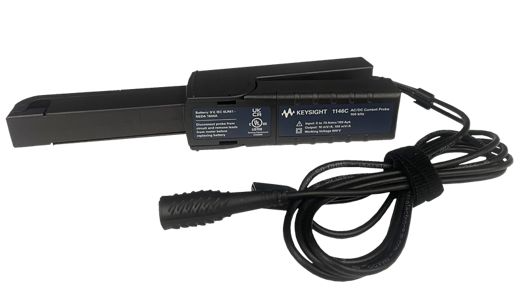

KEYSIGHT 1146C AC / DC Current Probe (100 kHz, 100 A)

Bandwidth: DC to 100 kHz (-3 dB)

Current range:

100 mV/A: 100 mA to 10 A peak

10 mV/A: 1 to 100 A peak

Output signal: 1000 mV peak max

AC current accuracy:

Range 100 mV/A (50 mA to 10 A peak)

Accuracy: 3% of reading ±50 mA

Range 10 mV/A (500 mA to 40 A peak)

Accuracy: 4% of reading ±50 mA

Range 10 mV/A (40 A to 100 A peak)

Accuracy: 15% max at 100 A

Noise:

Range 10 mV/A: 600 µV

Range 100 mV/A: 5 mV

Insertion impedance: 0.01 Ω (50/60 Hz)

Compatibility: Compatible with Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MΩ input

Maximum working voltage: 600 VRMS CAT II or 300 VRMS CAT III

Maximum common mode voltage: 600 VRMS CAT II or 300 VRMS CAT III

Influence of adjacent conductor: < 0.2 mA/A AC

Influence of conductor position: < 0.2 mA/A AC

Power:

USB

Battery: 9 V alkaline (NEDA 1604A, IEC 6LR61)

Low battery indicator: Green LED on when ≤ 6.5 V

Battery life: 55 hours typical
