Measure:
- DC voltage: 50 mV/0.05%, 500 mV, 5 V, 50 V, 50 V, 250 V /0.03%
Resolution: 1 μV, 10 μV, 0.1 mV, 1 mV, 10 mV
- AC voltage (True RMS): 50 mV, 500 mV, 5 V, 50 V, 250 V / 0.7%
Resolution: 1 μV, 10 μV, 0.1 mV, 1 mV, 10 mV
- DC current: 50 mA, 500 mA/0.03%
Resolution: 1 μA, 10 μA
- AC current: 50 mA, 500 mA /0.6%
Resolution: 1 μA, 10 μA
- Thermocouple type K: –40 oC to 1372 oC /0.3% (option)
Resolution: 0.1oC
- Resistance: 500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 50 MΩ /0.15%
Resolution: 0.01 Ω, 0.1 Ω, 1 Ω, 10 Ω, 0.1 kΩ, 1 kΩ
- Test Diode: Yes
- Frequency: 100 Hz, 1 kHz, 10 kHz, 100 kHz, 200 kHz /0.02%
Resolution: 0.001 Hz, 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz
Outputs:
- Constant voltage (CV): +/- 1.5000 V, +/- 15.000 V /0.03%
Resolution: 0.1 mV, 1 mV
- Constant current (CC): +/- 25.000 mA /0.03% ( mỗi dải có 15 bước)
Resolution: 1 μA
Square wave output PWM
- Frequency (Hz): 0.5-4800Hz / 0.005%
Resolution: 0.1Hz
- Duty Cycle (%): 0.39% to 99.60%
- Pulse Width (ms): 1/Frequency
- Amplitude (V): 5 V, 12 V, +/-5 V, +/-12 V /2%
Resolution: 0.1V
Power supply: 9.6 V Ni-MH rechargeable
Dimensions: 192 mm x 90 mm x 54 mm
Include: Quick Start Guide, Certificate of calibration (CoC), Calibrator/meter standard test lead kit, Yellow test lead for mA simulation, Protective holster, Rechargeable battery pack, AC power dapter and cord (according to country)
Option:
U5481A: IR-to-USB cable
U1186A: K-type thermocouple and adapter
U1168A: Standard test lead kit
U5491A: Soft carrying case
U5402A: Yellow test lead for mA simulation

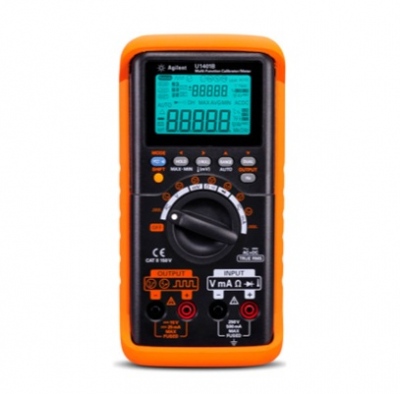

User and Service Guide for U1401B Handheld Multi-Function Calibrator/Meter
