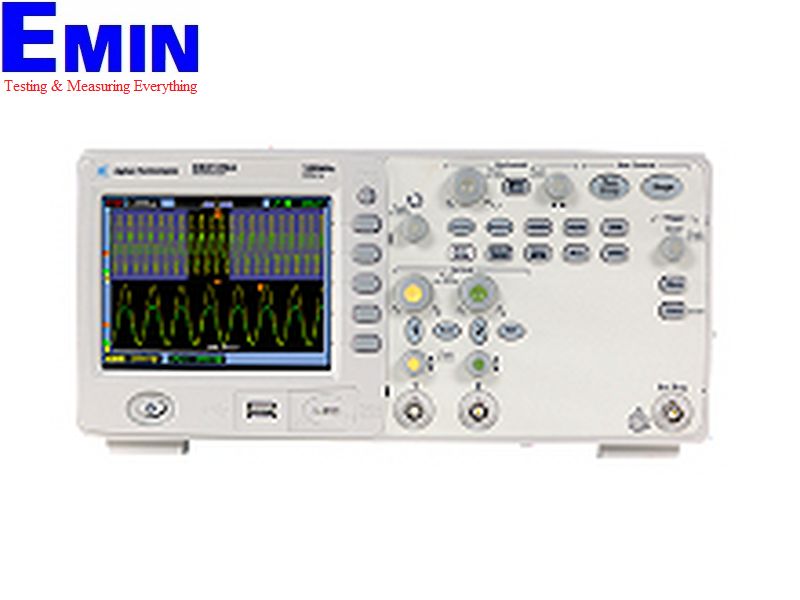

Bandwidth (-3dB): DC to 100 MHz
Real-time sample rate: 2 GSa/sec half channel interleaved, 1 GSa/sec all channel
Memory depth: 20 kpts half channel interleaved, 8 kpts all channels
Channels: 2
Vertical resolution: 8 bits
Vertical sensitivity (range): 2 mV/div to 10 V/div
DC gain accuracy: 2 mV/div to 5 mV/div: 4.0% full scale
10 mV/div to 10 V/div: 3.0% full scale
Vertical zoom: Vertical expand
Maximum input voltage: CAT I 300 Vrms, 400 Vpk; transient overvoltage 1.6kVpk
Horizontal modes: Main (Y-T), XY, delayed zoom and roll
Input coupling: DC, AC and ground
Input impedance: 1 MΩ 2% in parallel with 15 pF
Time scale accuracy: 50 ppm over 1 ms
Acquisition modes: Normal, Averaging, Sequence, Peak detect, Roll
Trigger coupling: AC, DC, LF reject, HF reject
Trigger modes: Force, Edge, Video, Pulse width, Alternate
Trigger sensitivity:
≥5 mV/div: 1 div from DC to 10 MHz, 1.5 div from 10 MHz to full bandwidth
<5 mv="" div:="" 1="" div="" from="" dc="" to="" 10="" mhz="" 1="" 5="" div="" from="" 10="" mhz="" to="" 20="" mhz="" span="">
Auto measurement: Voltage, Time, frequency Counter
Math functions: A+B, A-B, AxB, FFT
AutoScale: yes
Display: 5.7 inch, color QVGA TFT LCD
Save/Recall internal: 10 setups and 10 waveforms
Standard ports: USB 2.0 full-speed up to 12 Mb/sec
Physical size: 30.3 cm W X 15.4 cm H X 13.3 cm
Weight: Net: 2.4 kgs (5.3lbs) Shipping: 3.87 kgs (8.3lbs)
Accessories included: Documentation CD, Pwer cord , 10:1 passive probe for each input
channel 2 pcs
Manufacturer: AKEYSIGHT USA
