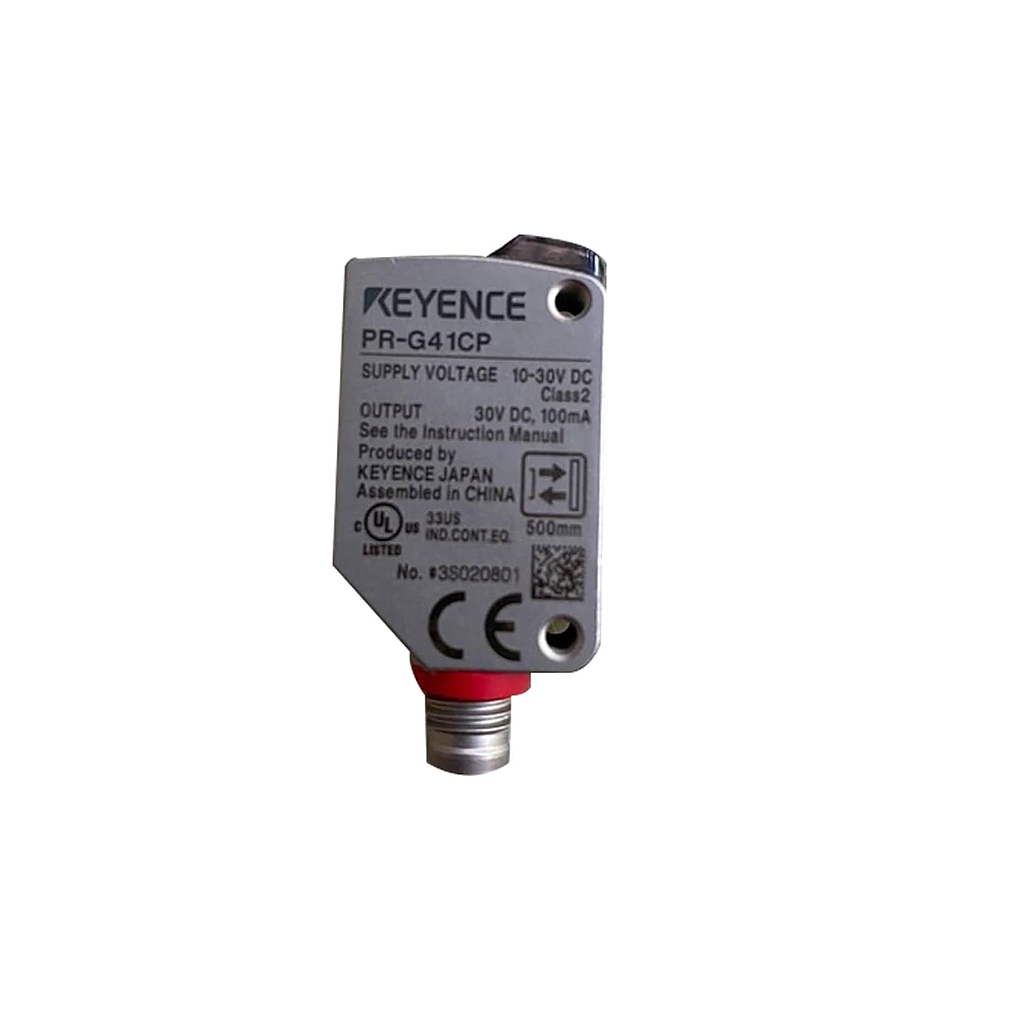

Type: Diffuse reflective (Long distance)
Shape: Rectangular
Output: PNP
Cable connection: M8 connector (4 pin)
Detecting distance: 500 mm19.685"
Number of control outputs: 2 (Dark-ON +Light ON)*1
Output operation
Output 1: Light-ON
Output 2: Dark-ON*2
Response time: 0.5 ms
Sensitivity adjustment: Five-turn trimmer
Spot diameter: ø20 mm ø0.79" max. (at 300 mm 11.81")
Light source: 4 elements, Point light source red LED (650 nm)
Light interference prevention function: 2
Indicator lamp: 7 segment display (0 to 999), output indicator (yellow)
Control output
PNP open collector
30 VDC or less, 100 mA or less
Residual voltage: 1.2 V or less at less than 10 mA, 2 V or less at 10 to 100 mA
Stop emission input: ―
Protection circuit: Protection against reverse power connection, power supply surge, output overcurrent, output surge, and reverse output connection
Rating
Power voltage: 10 to 30 VDC, including Ripple (P-P) 10 %
Power consumption: 450 mW max. (15 mA max. at 24 V, 21 mA max. at 12 V)
Environmental resistance
Enclosure rating: IP68 (IEC60529), IP69K (DIN40050-9), 4X, 6P, 13 (NEMA250)*3
Insulation resistance: 20 MΩ or more (500 VDC)
Ambient light: Incandescent lamp: 5,000 lux or less, Sunlight: 20,000 lux or less
Ambient temperature: -20 to +70 °C -4 to 158 °F (No freezing)*4
Relative humidity: 35 to 85 % RH (No condensation)
Storage temperature: -20 to +70 °C -4 to 158 °F
Withstand voltage: 1,000 VAC, 50/60 Hz, 1 min
Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
Shock resistance: 1,000 m/s2, 6 times in each of the X, Y, and Z directions
