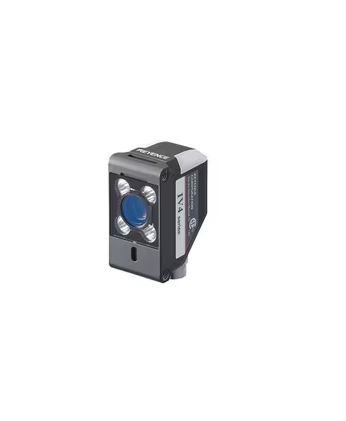

Type: Standard model
Installed distance: From 50 mm
Field of view
Installation distance of 50 mm: 22 (H) × 16 (V) mm to
Installation distance of 3000 mm: 1184 (H) × 888 (V) mm (reference value)
Image receiving element
Type: 1/2.9 inch colour CMOS
Number of pixels: 1280 (H) × 960 (V)
Focus adjustment: Auto *1
Exposure time: 12 μs to 9 ms *2
Lights
Illumination: White LED
Lighting method: Switchable between pulse and continuous lighting
Indicators: 2 indicators (both displaying same content)
Power supply
Average power consumption
2.5 W (without AI imaging illumination unit installed)
6.6 W (with AI imaging illumination unit installed)
Environmental resistance
Enclosure rating
IP67 *3
Ambient temperature: 0 to +50°C (no freezing) *4
Relative humidity: 85% RH or less (no condensation)
Vibration resistance
Frequency: 10 to 500 Hz;
Power spectral density: 0.816 G2/Hz; X, Y and Z directions
Shock resistance: 500 m/s2 3 times in each of 6 directions
Material: Main unit case: Zinc die-casting. Front cover: Acrylic. Operation indicator cover: TPU *5
Weight
Approx. 75 g (no AI imaging illumination unit)
Approx. 225 g (with AI imaging illumination unit)
