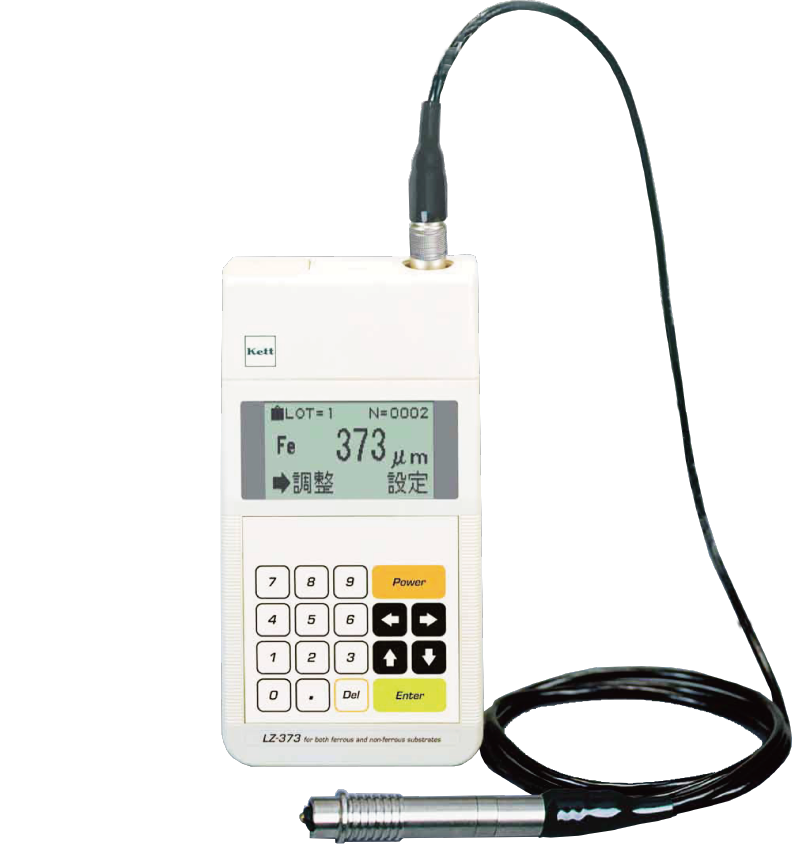

Kett LE-373 Coating Thickness Gauge (0-2500µm)

Method: Electromagnetic

Application:Ferrit coating

Range: 0-2500µm ~ 99.0mils

Accuracy: <50 µm ± 1 µm, 50 µm ~ <1000 µm ± 2%,

≥ 1000 µm ± 3%

Resolution: <100 µm, 0.1 µm; ≥ 100 µm, 1 µm

Standard: JIS K5600-1-7、JIS H8501、JIS H0401 / ISO 2808、ISO 2064、ISO 1460、ISO 2178、ISO 19840 / BS 3900-C5 / ASTM B 499、ASTM D 7091-5

Storage: app. 39,000 counts

Application memory: 100 calibration curve

Probe: Pressure probe (LEP-J)

Format:Digital(LCD backlight , min 0,1 µm)

Output:PC or printer (RS-232C)

Power supply:4 batteries 1.5V ("AA" Alkaline)

Consumption:80 mW (backlight off)

Life span: 100 h

Temp.0-40°C

Dim and weight: 75(W) x 145(D) x 31(H) mm, khối lượng 0.34 kg

Accessories: Calibration plate, couplant, case, batteries 4 x 1.5V "AA" Alkaline
