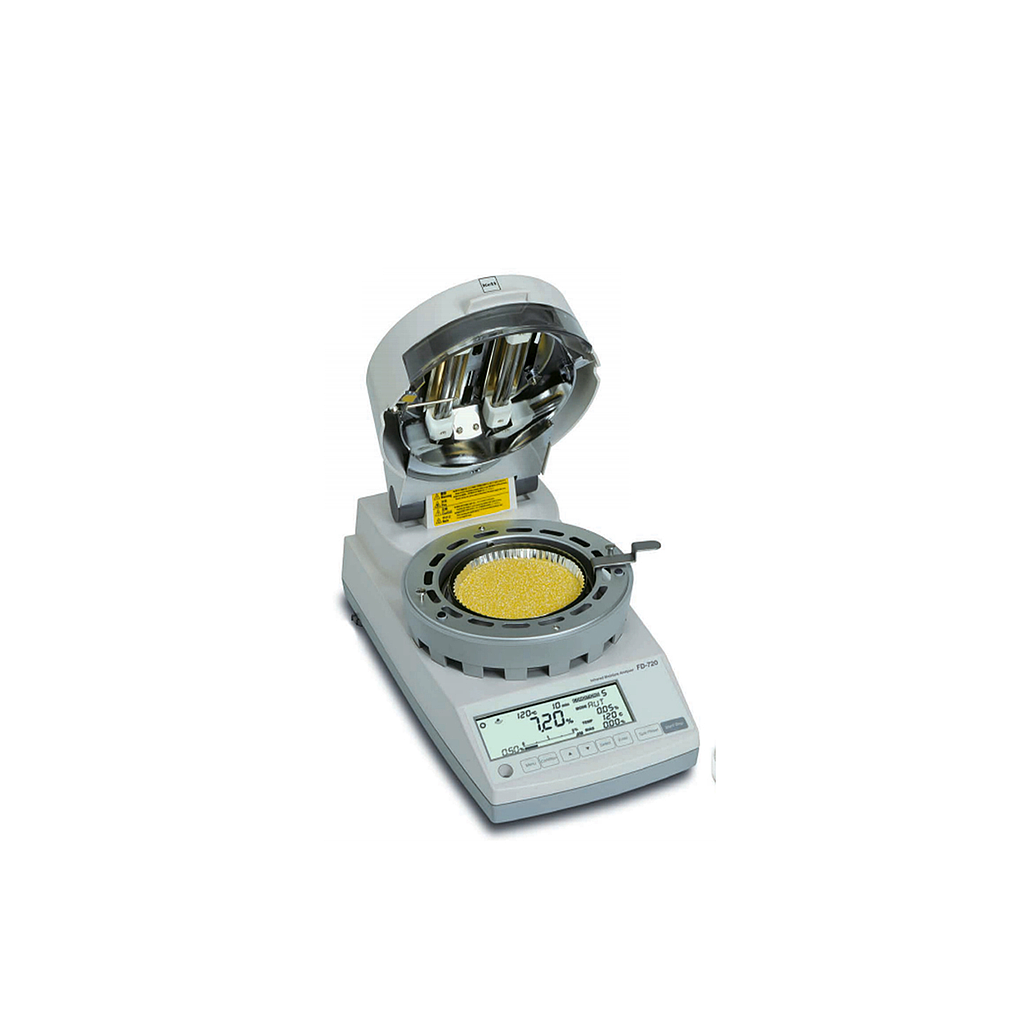

Kett FD-720 Infrared Moisture Analyzer

Measurement format: Evaporation weight loss method (Heat drying and weight loss method)

Measurement object: Powder, Particle, Liquid, Paste, etc.*1

Sample weight: 0.5-120g using selective weight sampling method

Minimum displayable units: Switch between moisture 0.01 % or 0.1 %, mass 0.001g

Measurement range:

0-100 % (wet base, solids)

0-500 % (dry base)

Reproducibility (Standard deviation): Sample mass 5 g and above 0.05 %

Sample mass 10 g and above 0.02 % (including water content)

Measurement modes: Automatic halting mode, Timed halting mode, High-speed drying mode, Lowspeed drying mode, Stepped drying mode, Predictive measuring mode

Temperature range: 30-180˚C in 1-degree increments when using a thermistor

Display: Backlight LCD display (137 mm x 43 mm)

External output: RS-232C interface

Data memory: 100 of data

Temp./humidity operating range: 5 -40 ˚C, maximum of 85 % RH (no condensation)

Heat source: Mid-infrared quartz heater (200 W x 2)

Temp. sensor: Thermistor

Sample dish: Stainless steel (Diameter: 130 mm; Depth 13 mm)

Power supply: AC100-120 V/220-240 V (50/60 Hz)

Power consumption: Maximum 900 W

Weight and dimensions:

Net:5.4kg / Gross:9.5kg

220 x 415 x 220 mm (W x D x H)

Items included: 2 Sample dishes, 2 Sample dish handlers, Sample dish tray, Wind shield, Power cord, Spoon & Spatula set, 2 Spare fuses (8A), 2 Packages of aluminum foil sheets (10 per package), Glass fiber sheets (10 sheets), Operating manual
