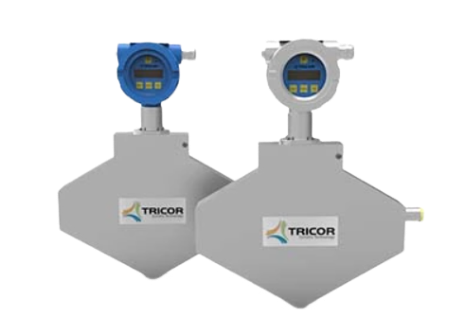

KEM TCM 3100 Coriolis mass flow meters for liquids and gases (3100 kg/h | 114 lb/min, DN6 mm | 1/4″)

Nominal Line Size: 1/8” | DN4 mm

Maximum Flow Rate: 3100 kg/hr | 114 lbs/min | 3100 l/hr | 13.65 gpm | 468 bbl/d (US)

Pressure Rating: 2,900 psi | 200 bar

Measuring Accuracy*: ±0.1% of flow rate (Liquids) | ±1.0% of flow rate (Gases)

Repeatability: ±0.05% of flow rate (Liquids) | ±0.25% of flow rate (Gases)

Zero Stability: ±0.01% of full scale

Density Range: up to 2,500 kg/m3 (2.5 g/cm3)

Process Temperature Range: Standard: -40°F to 212°F (-40°C to 100°C) | Optional: -76°F to 392°F (-60°C to 200°C)

Temperature Accuracy: ±1.8°F ±0.5% of reading | ±1.0°C ±0.5% of reading

Temperature Repeatability: ±0.36°F | ±0.2°C

Calibration: 5-point logarithmic calibration

Standard Process Connection: Female thread 0.5” NPT
