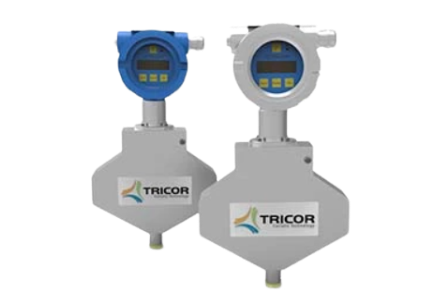

KEM TCM 0325 Coriolis mass flow meters for liquids and gases (325 kg/h| 325 l/h, DN4 mm|1/8″)

Flow Rate

Mass Flow Rate (max.): 325 kg/h [12 lb/min]

Volumetric Flow Rate (max.): 325 l/h [1.43 gpm, 49 oil bbl/d (US)]

Nominal Meter Size: DN4 [1/8”]

Pressure Rating

200 bar [2,900 psi]

Option: up to 345 bar [5,000 psi]

Accuracy (Liquids)

Basic Accuracy (Mass Flow): ±0.1 % of flow rate

Repeatability (Mass Flow): ±0.05 % of flow rate

Basic Accuracy (Volume Flow): ±0.15 % of flow rate

Repeatability (Volume Flow): ±0.05 % of flow rate

Zero Stability: ±0.01 % of full scale

Accuracy (Gases)

Basic Accuracy (Mass Flow): ±0.5 % of flow rate

Repeatability (Mass Flow): ±0.25 % of flow rate

Density

Density Range: up to 2,500 kg/m3 [2.5 g/cm3]

Density Accuracy: ±1.0 kg/m3 [±0.001 g/cm3]

Density Repeatability: ±0.5 kg/m3 [±0.0005 g/cm3]

Temperature

Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F]

Option:

-60 °C ... +200 °C [-76 °F ... +392 °F]

Temperature Accuracy: ±1 °C ±0.5 % of reading [±1.8 °F ±0.5 % of reading]

Temperature Repeatability: ±0.2 °C [±0.36 °F]

Materials (Wetted Parts)

Tubes: 1.4404 [AISI 316L]

Case: 1.4404 [AISI 316L]

Flow Splitter: 1.4404 [AISI 316L]

Brazing Alloy: BNi-2
