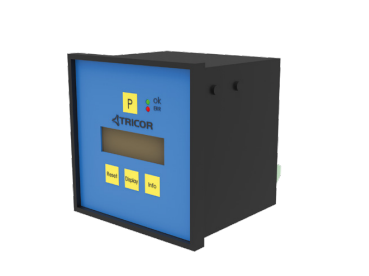

Display: back-lit LCD screen 132 x 32 dot
Programmed via front keyboard or TRICOR configurator RS485 (Modbus RTU)
Supply Voltage: 24 V DC
Power Consumption: 4 W
Interfaces: RS485 (Modbus RTU)
Housing Material: Noryl
Protection Class:
front: IP50
rear: IP30
ANALOG OUTPUT
Current Outputs (2x): 4 ... 20 mA passive
Output Value (programmable): flow, total mass, total volume, density, temperature
PULSE OUTPUT
Frequency Range: 0.5 - 10,000 Hz
Output Signal: active push-pull output for flow rate
STATUS IN- AND OUTPUT
Status Output: push pull programmable
in TOTAL mode: 0.5 - 100 Hz
in FREQUENCY mode: 0.5 - 10,000 Hz
Control Input: programmable
ANALOG INPUT (OPTION)
Input Type: 4 ... 20 mA active for two-wire passive pressure sensor
TEMPERATURE
Ambient Temperature (DC): ±0 °C ... +60 °C [-32 °F ... +140 °F]
Storage and Transport: -20 °C ... +70 °C [-4 °F ... +158 °F]
CONNECTIVITY
Electrical Connections: cage clamp terminals
Sensor connector: D-SUB, 9-pin, female thread
