Application: Filling processes
Process Medium:
Hydraulic fluids, glycol, grease
Lubricating
Medium/high viscosityy
Attributes:
Stainless steel body
Stainless steel ball bearing
Bigger tolerances
Technical Data – Sizes
Measuring Range (l/min): 4 to 400
K-Factor (pulses/l): 214
Max. Pressure (bar/psi): 200 [2,900]
Frequency (Hz): 14 to 1,450
Weight (kg): 34
Technical Data – General
Measuring Accuracy: Default: ±0.5 %; Premium: ±0.25 %
Repeatability: ±0.05 % (under the same conditions)
Materials
Housing: as per DIN 1.4305 [AISI 303]
Gears: as per DIN 1.4122
Bearing: ball bearing
Thread: BSPP
Sensor Ports: M14x1.5
Seals: FKM
Medium Temperature: -40 °C up to +180 °C [-40 °F up to +356 °F] (others on request)

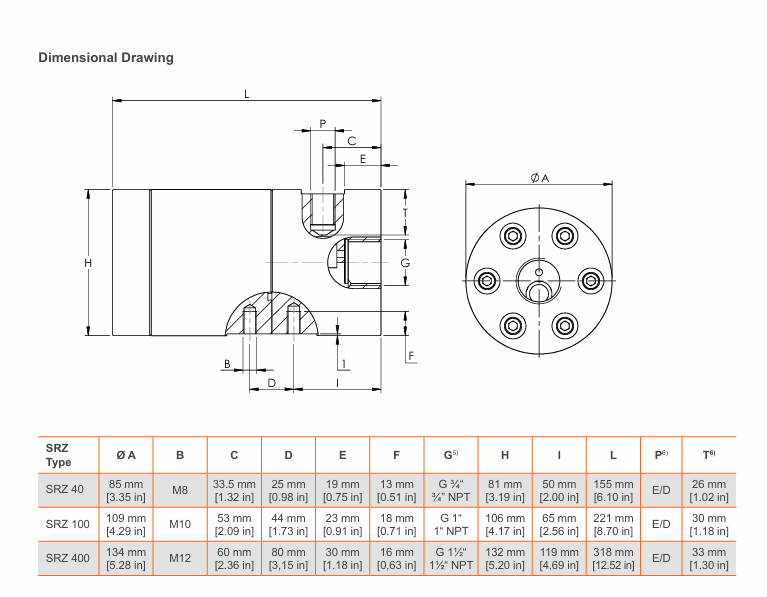

Dimensions: See dimensional drawing (In details)
See datasheet for choosing suitable configurations!
