KEM HM 013 AC Turbine Flow Meters (8.5 - 85 L/min) | EMIN.CO.TH

Turbine Flow Meters
KEM HM 013 AC Turbine Flow Meters (8.5 - 85 L/min)

Stay Updated with Offers

Get exclusive volume discounts, bulk pricing updates, and new product alerts delivered directly to your inbox.

By subscribing, you agree to our Terms of Service and Privacy Policy.

Quick Support

Direct access to our certified experts

Product image

KEM HM 013 AC Turbine Flow Meters (8.5 - 85 L/min)

ManufacturerKEM(View more products from this manufacturer)

ModelHM 013 AC

Contact

Quantity

Secure Checkout

Quality Engagement

Easy change and return

Delivery Available

Technical Data – Sizes

HM types: HM 013 AC

Measuring Range (l/min): 8.5 - 85 L/min

K-Factor (pulses/l): 920 (pulses/l)

Max. Pressure: 1,035 [15,010] (bar/psi)

Max. Frequency (Hz): 1,300 Hz

Weight: 5.5 kg

Technical Data – General

Measuring Accuracy: ±0.1%

Repeatability: ±0.05 % (under the same condition)

Linearity: ±1 % of actual flow (viscosity = 1 mm²/s)

Viscosity Range: 0.8 up to 30 mm2/s

Measuring Span

Standard: 1:10

Extended: on request

Materials

Housing: as per DIN 1.3980

Wheels: as per 1.4460 [AISI 329]

Bearing: Tungsten carbide sleeve bearing

Medium Temperature: -40 °C up to +150 °C [-40 °F up to +302 °F]

Dimensions: See dimensional drawing

See datasheet for choosing suitable configurations!

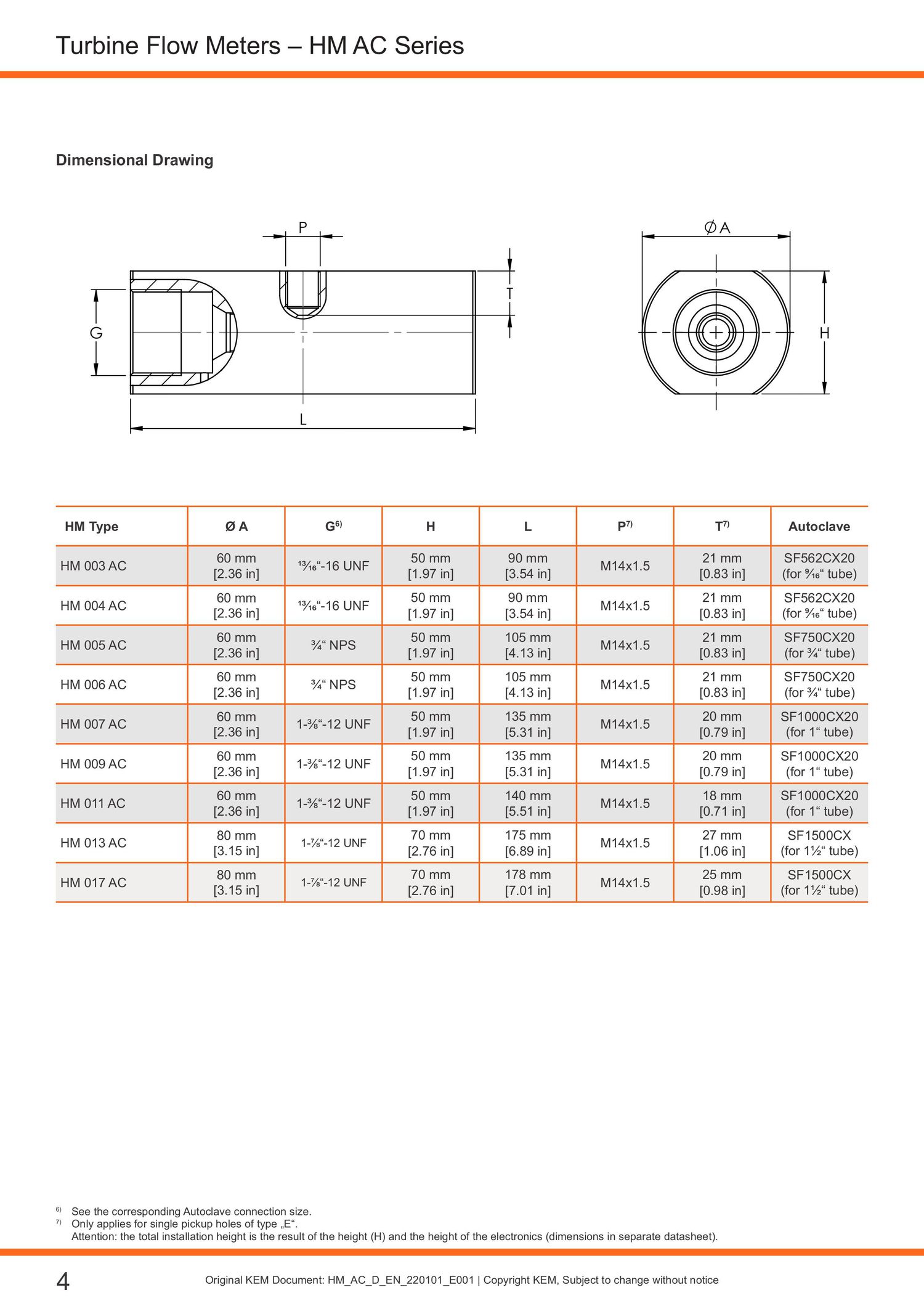

Dimensional Drawing

Datasheet

Manual
