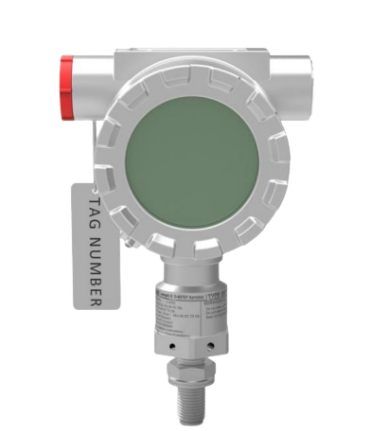

KEM FlowPod Local Display (4 - 20 mA)

Technical Data

Carrier frequency, inductive or Reed switch input

Analog Output: 4 to 20 mA passive (2-wire)

HART 7 interface

2x configurable switch outputs for alarm, pulse or batch

Operating Temperature: ‐20 °C up to +75 °C [‐4 °F up to +167 °F]

20+ point linearization of the measured value

Ingress Protection: IP66/68 - NEMA 4X

ATEX, IECEx

Features

Explosion-proof (Exd/XP)

Lightweight DIN 1.4401 [AISI 316] stainless steel housing

Screwless design for quick and easy on-site installation

Calibration data transmission by memory card

FRAM memory

Datasheet

Manual
