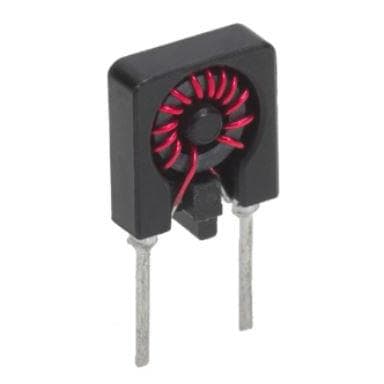

KEMET SBT-0260 DC Line Filters 50V 60uH 35% 0.5A DCR=50mOhms

Width: 7.5 mm

Height: 8.7 mm

Length: 3 mm

Shielding: Unshielded

Tolerance: 35 %

Inductance: 60 uH

Application: Audio Visual, Office Automation Equipment, Digital Appliances, Home Appliances, Power Supplies

Filter Type: Normal mode

Unit Weight: 260 mg

Lead Spacing: 5 mm

Core Material: Ferrite

Lead Diameter: 0.6 mm

Mounting Style: PCB Mount

Test Frequency: 1 kHz

Termination Style: Through Hole

Maximum DC Current: 500 mA

Number of Channels: 1 Channel

Maximum DC Resistance: 50 mOhms

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
