Width: 22 mm (0.866 in)
Height: 22 mm (0.866 in)
Length: 26 mm (1.024 in)
Tolerance: 5 %

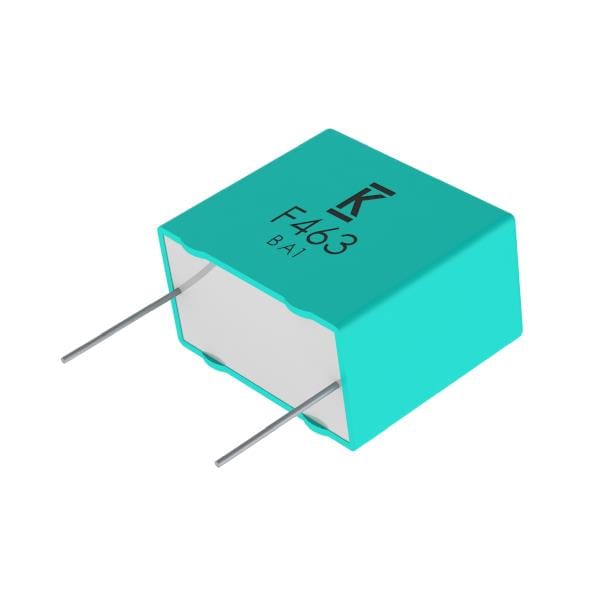

Dielectric: Polypropylene (PP)
Lead Style: Straight
Capacitance: 0.068 uF
Lead Spacing: 22.5 mm (0.886 in)
Lead Diameter: 0.8 mm
Number of Pins: 2 Pin
Capacitance - nF: 68 nF
Capacitance - pF: 68000 pF
Termination Style: Radial
Voltage Rating AC: 700 VAC
Voltage Rating DC: 2 kVDC
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 55 C
