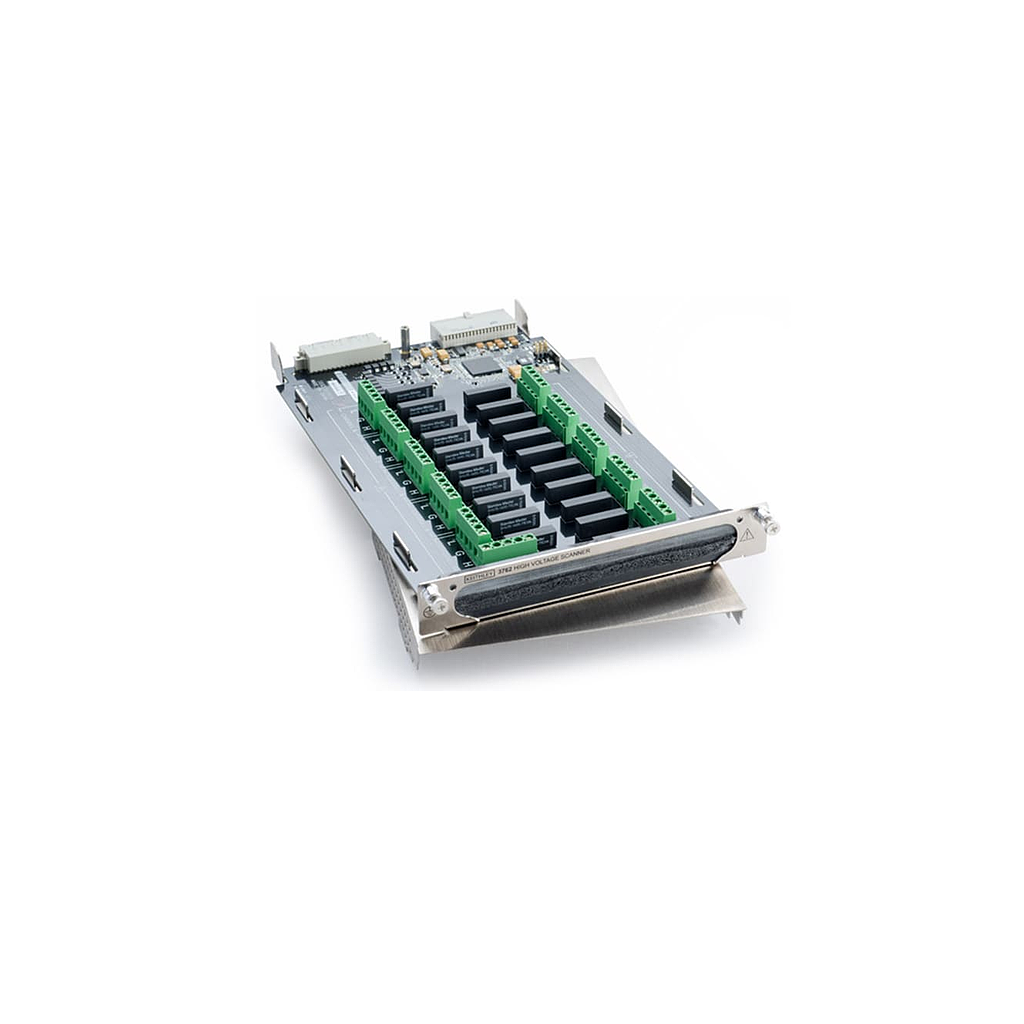

KEITHLEY 3762 10-Channel High Voltage Multiplexer Card

Channels Per Card: 10.

Contact Configuration: 2 Form A with user selectable shield or driven guard.

Connector Type: Screw terminals, #16AWG maximum wire size

Relay Drive Current: 80 mA per relay typ.

Maximum Switching Levels: 1000 V, 0.5 A, 10 W.

Maximum Carry Current: 1 A DC or RMS.

Contact Life: >108 closures (cold switching), >106 closures (hot switching at 1000 V, 1 mA).

Contact Resistance: <200 mΩ initial, <2 Ω for rated life.

Contact Potential: <35 µV per contact pair.

Actuation Time: <2 ms exclusive of mainframe.

Channel Isolation: >10^10 Ω, <10 pF.

Differential Input Isolation: >10^9 Ω, <10 pF.

Common Mode Input Isolation: >10^9 Ω, <150 pF.

Common Mode Voltage: 1000 V peak.

EMC: Conforms with European

Union Low Voltage Directive.

Operating Environment: 0° to 50°C, 70% relative humidity up to 35° C.

Storage Environment: –25° to 65° C.
