Accuracy: 0.05%F.S
Resistance: 0~3200Ω
RTD :Pt100, Pt1000, Cu50, Cu100
Waterproof protection: IP67 grade
Weight : 0.65kg
Dimensions: 185mm×93mm×47mm

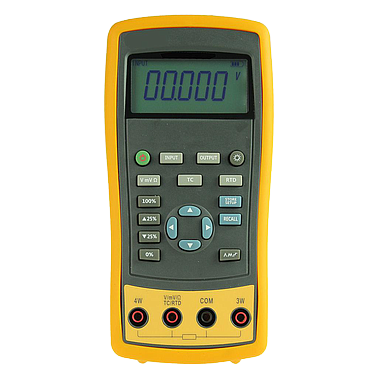

KT1812 RTD Calibrator is a kind of calibrating RTD temperature transmitter instrument, it can use on site. It can measure and simulate various type RTD. It can also simulate and test resistance.
Features
Ø Accuracy: 0.05%F.S
Measure output temperature of thermal resistance
May simulate output of thermal resistance
Ø Automatic identification of three-wire or four-wire connection mode
Ø Perfect performance on waterproof protection: IP67 grade
Ø In case of connecting 220V with automatic over voltage protection function.
Ø With manual stepping, automatic stepping and 0 ~ 100% output of phase step and ramp function
Ø LED with white backlight
Ø Weight : 0.65kg
Ø Dimensions: 185mm×93mm×47mm
Technical Specification
Measure and Source Functions
|
Function |
Measure |
Source |
|
DC V |
0~30V |
Not available |
|
Resistance |
0~3200Ω |
0~3200Ω |
|
RTD |
Pt100, Pt1000, Cu50, Cu100 |
Pt100, Pt1000, Cu50, Cu100 |
|
Others |
Stepping output, ramp, phase step output, user-defined range |
|
