SPECIFICATION
Pipe diameter range: 10 mm to 3,000 mm
Temperature range for sensors: -50 °C to +115 °C (-58 °F to +239 °F) , higher temperatures available on request

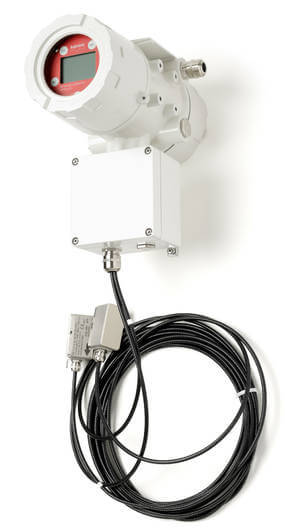

Robust IP 66 un it with LCD display and glass-fronted keypad
Epoxy-coated aluminium or stainless steel enclosure
Magnetic pen for safe and easy programming
Measurement of two flows simultaneously
PERFORMANCE
Measurement principle: Ultrasonic transit-time difference
Flow velocity range: 0.01 ... 25 m/s
Resolution: 0.25 mm/s
Repeatability: 0.15 % of measured value, ±0.015 m/s
Accuracy:
Volume flow:
±1 ... 3 % of measured value depending on application
±0.5 % of measured value with process calibration
Flow velocity (mean): ±0.5 % of measured value
Turn down ratio: 1/100 (equivalent to 0.25 ... 25 m/s)
Measurement rate: 100 Hz (standard)
Response time: 1 s (standard); 90 m/s (optional)
Damping of displayed value: 0 ... 99 s (selectable by user)
Gaseous and solid content of liquid media: < 10 % of volume
