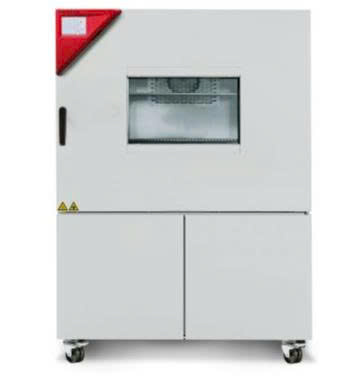

Karg MKF400 Dynamic Climate Chambers (-40 ~180°C , 10 ~98%RH)

Performance Data Temperature

Temperature range [°C]: -40…180

Temperature variation depending on setpoint [± K]: 0.1…1.2

Temperature fluctuation depending on setpoint [± K]: 0.1…0.5

Average heating-up rate according to IEC 60068-3-5 [K/min]: 5

Heating up time from -40 °C to -40 °C [min]: 55

Cooling down time from 180 °C to -40 °C [min]: 115

Average cooling down time acc. to IEC 60068-3-5 [K/min]: 5

Max. heat compensation at 20 °C [W]: 4500

Performance Data Climate

Temperature range [°C]: 10…95

Temperature variation depending on setpoint [± K]: 0.1…1.5

Temperature fluctuation depending on setpoint [± K]: 0.1…1.3

Humidity range [% RH]: 10…98

Humidity fluctuation depending on setpoint [± %] r.F.: 2.5

Dew point temperature range [°C]: 5…94

Electrical data

Rated Voltage [V] : 400

Power frequency [Hz]: 50

Nominal power [kW]:  8

Unit fuse [A]: 16

Phase (Nominal voltage) [ph]: 3~

Outer dimensions

Width net [mm]: 1115

Height net [mm]:  1710

Depth net [mm]: 1400

Wall clearance back [mm:] 300

Wall clearance sidewise [mm]: 300

Viewing window width [mm]: 508

Viewing window height [mm]: 300

Doors

Unit doors: 1

Internal Dimensions

Width [mm]: 735

Height [mm]: 700

Depth [mm]: 810

Further Dimension

Interior volume [L]: 417

Net weight of the unit (empty) [kg]: 432

permitted load [kg]: 150

Load per rack [kg]: 30

Environment-specific data

Sound-pressure level [dB(A)]: 65

Fixtures

Number of shelves (std./max.): 1/6
