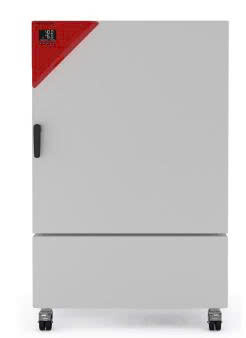

Karg KB ECO 720 Cooling Chambers (0 ~+70 °C, 1.3kW)

Performance Data Temperature

Temperature range (max. 26°C below ambient temperature) [°C]: 0…+70

Temperature variation at 37 °C [± K]: 0.1

Temperature fluctuation at 37 °C [± K]: 0.1

Recovery time after 30 seconds door open at 37 °C [min]: 4

Electrical data

Rated Voltage [V]: 200…230

Power frequency [Hz]: 50 / 60

Nominal power [kW]: 1.3

Unit fuse [A]: 16

Phase (Nominal voltage) [ph]: 1~

Outer dimensions

Width net [mm]: 1250

Height net [mm]: 1925

Depth net [mm]: 885

Wall clearance back [mm]: 100

Wall clearance sidewise [mm]: 100

Doors

Inner doors: 2

Unit doors: 2

Internal Dimensions

Width [mm]: 973

Height [mm]: 1250

Depth [mm]: 576

Further Dimension

Interior volume [L]: 700

Net weight of the unit (empty) [kg]: 272

permitted load [kg]: 150

Load per rack [kg]: 45

Environment-specific data

Energy consumption at 4 °C [Wh/h]: 185

Energy consumption at 37 °C [Wh/h]: 105

Sound-pressure level [dB(A)]: 47

Fixtures

Number of shelves (std./max.): 2 / 15
