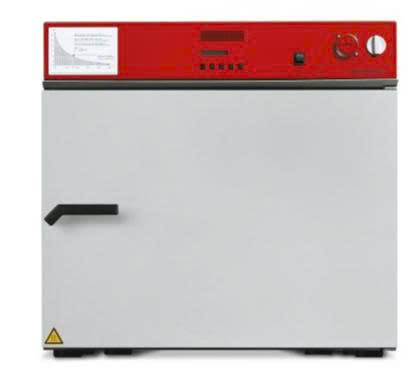

Karg FDL115 Safety Drying Ovens (10°C - 300 °C, 2.9kW)

Performance Data Temperature

Temperature range 10 °C above ambient temperature to [°C]: 300

Temperature variation at 150 °C [± K]: 2.5

Temperature fluctuation [± K]: 0.8

Heating-up time to 150 °C [min]: 20

Recovery time after 30 seconds door open at 150 °C [min]: 12

Air change data

Air circulation (approx.) [x/min]: 20

Volumetric flow rate of exhaust air acc. to EN 1539 at 50 °C [ca. L/min]: 400

solvent quantity

Highest permitted solvent quantity (at T-180 °C, M-100g/mol, U-40g/m3, K=0,5) [g]: 66.5

Electrical data

Rated Voltage [V]: 230

Power frequency [Hz]: 50 / 60

Nominal power [kW]: 2.9

Phase (Nominal voltage) [ph]: 1~

Outer dimensions

Width net [mm]: 830

Height net [mm]: 805

Depth net [mm]: 685

Wall clearance back [mm]: 160

Wall clearance sidewise [mm]: 100

Internal Dimensions

Width [mm]: 600

Height [mm]: 435

Depth [mm]: 435

Further Dimension

Interior volume [L]: 115

Net weight of the unit (empty) [kg]: 90

permitted load [kg]: 60

Load per rack [kg]: 30

Environment-specific data

Energy consumption at 150 °C [Wh/h]: 1200

Sound-pressure level [dB(A)]: 57

Fixtures

Number of shelves (std./max.): 2 / 5
