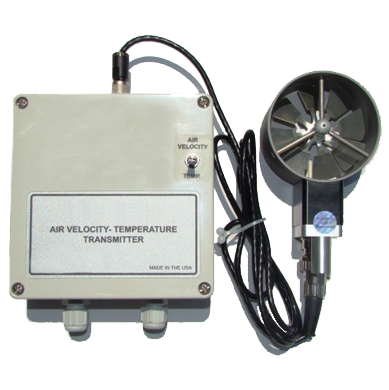

Kanomax TAT420 Vane Type Airflow Transmitter

Manufacturer: Kanomax

Model: TAT420

Origin: Japan

Warranty: 12 months

- Air Velocity:

Metal rotating vane: AP275/APT275: 2.75″ diameter; AP100/APT100: 1″ diameter

Range: 1″ Probe: 300 to 6890 FPM (1.5 to 35 m/s); 2.75″ Probe: 50 to 7800 FPM (0.2 to 40 m/s)

Accuracy: 1″ Probe: ±0.5% of Full-scale + 0.75% of READING ±1 digit; 2.75″ Probe: ±1.0% of READING ±1 digit

Resolution: 1 FPM or 0.01 m/s

- Temperature:

Range: APT Probe: -4 to 176 F (-20 to 80C)

Accuracy: ±0.5℃

Resolution: 0.1 F or 0.1℃

- Analog Output: Current output: DC 4~20mA; Voltage output: DC 0~1V or 0~5V

- Operating Temperature: Transmitter: -4 to 176F (-20 to 80C); Probe: -22 to 212F (-30 to 100C)

- Power Supply: 120 or 220 VAC (50-60 Hz); 10 to 30 VDC

- Dimensions: Transmitter Housing: W 4.8 x D 2.2 x H 4.8 inches (12.2 x 5.6 x 12.2 cm)

- Featrure:

Specially designed for monitoring indoor air quality.

Premier series cabling and probe connections.

Simultaneous measurement of air velocity and temperature.

The heavy, all metal probe can be used for airstreams that have a wide range of humidity, temperature and contaminants without compromising accuracy.

Please specify types of output (4-20mA, 0-1VDC or 0-5VDC) when you order.

- Applications:

HVAC Testing & Balancing

IAQ Investigations

Industrial Hygiene Ventilation Verification

Filter Face Air Velocity Measurement

Manual
