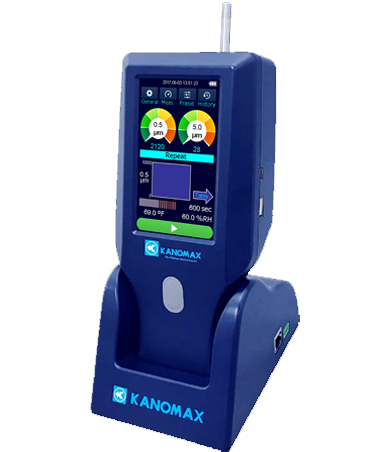

Kanomax 3889 HANDHELD PARTICLE COUNTERS (6-channel)

Manufacturer: Kanomax

Model: 3889

Warranty: 12 months

- Particle Measurement:

+ Sizes: 6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm）

+ Flow rate: 0.1CFM (2.83L/min); Accuracy: ±5%

+ Maximum measurable Concentration: 10% for 2,000,000 particles/CF

+ Counting efficiency: 50±20%（for PSL particles near the minimum measurable size）;

100±10% （for PSL particles of 1.5 to 2 times as large as the minimum measurable size）

+ False count: ≦1 particle/5 minutes

+ Size resolution: ≦15% (for PSL particles near 0.3μm)

- Display: 4.3 inch color LCD, Resistive touch panel

- Communication:

+ Standard: USB (Host: for printer and USB flash memory, Device: for PC）

+ Stand (option): RS485, Ethernet, and WiFi connection points in the base/stand

- Recording media:

+ Media: Internal memory

+ Number and format: Up to 10,000 records in CSV format

- Language: English, Japanese, Chinese, and Spanish

- Power:

+ Internal supply: Li-ion rechargeable battery (Replaceable）

+ External supply: AC adaptor Input 100 to 240 V

+ continuous operation time: 5 hours（Single measurement）

- Operating environment:

+ Main body: From 10 to 40 ℃, from 0 to 85%RH (With no condensation）

+ Probe: From 0 to 50 ℃, from 2 to 98%RH（With no condensation）

- Dimension: W213 X H100 X D55 mm

- Weight: 650g

- Hydrothermal Measurement (Available as an option for the 6- channel portable particle counter)

+ Measurement range: （Temperature）From 0 to 50℃; （Humidity）From 2.0 to 98.0％RH

+ Display resolution: （Temperature）0.1℃; （Humidity）0.1％

+ Humidity accuracy: ±3.0% (30 to 85%RH), ±5% (other range of humidity)

+ Temperature accuracy: ±0.5℃

+ Response time: Approximately 60 seconds or less（90％ response）

- Features:

Model 3888 displays 3 particle sizes simultaneously (0.3, 0.5, 5.0μm) in cf or m3

Model 3889 displays 6 particle sizes simultaneously (0.3, 0.5, 1.0, 3.0, 5.0, 10.0μm) in cf or m3

Large, 4.3-inch full-color touchscreen

0.3 micron minimum sensitivity

Store up to 10,000 measurements

Compact and Light weight

Remote control software

- Applications:

Monitor and verify cleanrooms (pharmaceutical, semi-conductor, food industry)

Monitor surgical rooms

Filter testing

IAQ investigation

Data center cleaning
