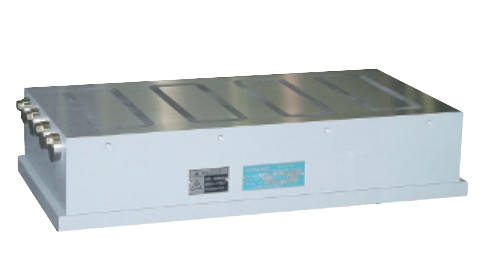

Designed for heavy duty cutting by a milling machine and planomiller. Most suitable for powerful chucking of thick workpieces and high-speed cutting where a large cutting force is exerted.
Nominal Size: 200（7.87）× 800（31.5）[mm(in)]
Work Face [mm(in)]
B1: 200 （7.87）
L1: 800（31.5）
Le: 718（28.2）
Be: 160 （6.29）
Pole Pitch [mm(in)]
P1: 58（2.28)
P2: 50（1.96)
No.of Poles: 7
Mounting Face [mm(in)]
B2: 206 （8.10）
L2: 820（32.2）
h: 20 （0.78）
Height [mm(in)]
H: 100 （3.93)
Mounting Hole [mm(in)]
G: Clamping (No hole)
Voltage: 90 VDC
Current: 1.42A
Mass: 115kg/ 253lb
