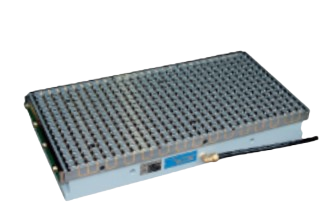

An electromagnetic chuck with a vacuum chuck function of grid seal type added. The vacuum chuck function enables it to hold nonmagnetic workpieces also.
Nominal Size: 500mm(19.6")× 1000mm(39.4")
Work Face[mm(in)]
B1: 500 (19.6)
L1: 1000 (39.4)
t: 30 (1.18)
Le1: 943 (37.1)
Le2: 980 (38.5)
L2: 80 (3.14)
L3: 440 (17.3)
Be: 480 (18.8)
B4: 380 (14.9)
Pole Pitch[mm(in)]
P: 20(3+17) (0.78)
Mounting Face[mm(in)]
B2: 490 (7.08)
h: 20 (0.78)
Height[mm(in)]
H: 90 (3.54)
Grid Pitch: 20 (0.78)× 20 (0.78)
Voltage: 90 VDC
Current: 2.3A
Mass: 300kg/661 lb
