Operation conditions
Ambient temperature: (23±2) °C
Relative humidity: （50±10）%
1. Inductance range: 1μH —1H
2. Zero-switch inductance: <0.8μH
3. Error:
1uH -100mH ：±（0.02% +0.05μH）
100mH - 1H ：± 0.05%
4. Output mode: Three-terminal or four-terminal output
5. Calibration frequency/operating frequency (f): 1,000Hz
6. Maximum operating voltage (U): ≤50V
Datasheet
Features

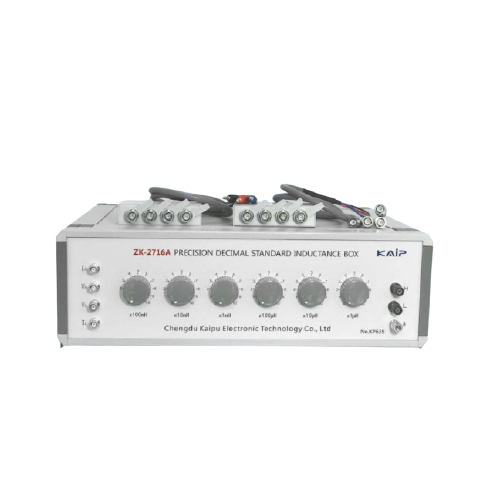

ZK2716A precision decade inductance box is an ideal standard inductance measuring instrument with high performance, good stability, wide inductance range and convenient to use. It is suitable for measurement laboratories, research institutions and production. It adopts inductor coils wound on toroidal core with temperature compensation to form the closed magnetic circuit. It uses a special changeover switch to realize a six-digit decade inductance change, and is continuously adjustable within the range of 1µH～1.111110H. The adoption of excellent electromagnetic shielding, vibration prevention and moisture-proofing technique, the standard inductor is highly stable.
Both three-terminal output mode and four-terminal output mode are installed for convenient connection of RLC instrument and special inductance measuring instrument. The binding posts are used among three terminals, and BNC socket connectors are adopted among four terminals to reduce interference
