Flue gas dynamic pressure: Range: (0 ~ 2000) Pa, Resolution: 1 Pa, Maximum permitted error: ± 2%
Flue gas static pressure: Range: (-30 ~ 30) kPa, Resolution: 0.01 kPa, Maximum permitted error: ± 4%
Flue gas temperature: Range: (0 ~ 500) ℃ (expandable), Resolution: 1 ℃, Maximum permitted error: ±3 ℃
Flue gas flow rate: Range: (1 ~ 45) m/s, Resolution: -, Maximum permitted error: ± 5%
Ambient atmospheric pressure: (50 ~ 130) kPa
Operating temperature: (-20 ~ 50) ° C
Charging time: < 6h
Battery operating time: > 24h
Power adapter: Input AC (100~240) V, 50/60Hz; Output DC5V 2A
Size: (length 85 x width 55 x height 140) mm
Weight: About 0.5kg
Power consumption: ≤ 0.5 W

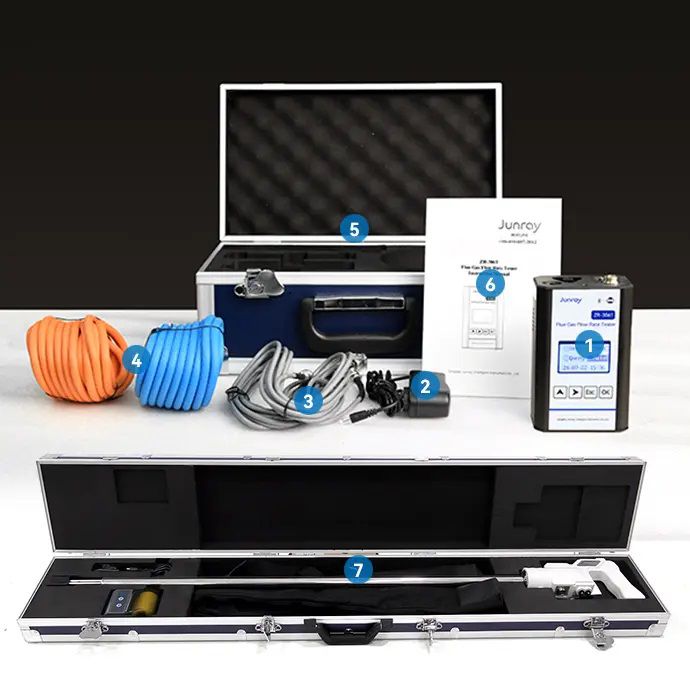

Includings:
1、 Host
2、 power adapter
3、 smoke temperature wire
4、 silicone rubber tube （bule & orange）
5、 Main aluminum box
6、 product manual
7、 ZR-D06B TMS probe & Accessory box
Product details

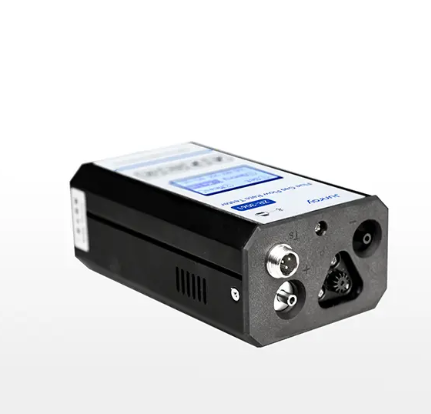

ZR-3061 Flue gas flow rate tester is a handheld portable instrument used to measure the flue gas flow rate, flow, dynamic pressure, static pressure, temperature and other parameters of stationary pollution source.
Features
1. Lightweight
> LCD display, English menu operation.
> Light, portable, and easy to operate.
2. High Test Efficiency
> Imported high-precision micro-differential pressure sensor: high precision, and small temperature drift.
> Calculate the average flow rate, average pressure, flue gas flow and other parameters automatically.
> Automatic zero correction and software calibration functions to ensure the measurement accuracy.
3. Long battery life
> Built-in lithium-ion rechargeable battery: can be used continuously for more than 24 hours.
> Can save 200 groups of measurement data without lost after shutdown
