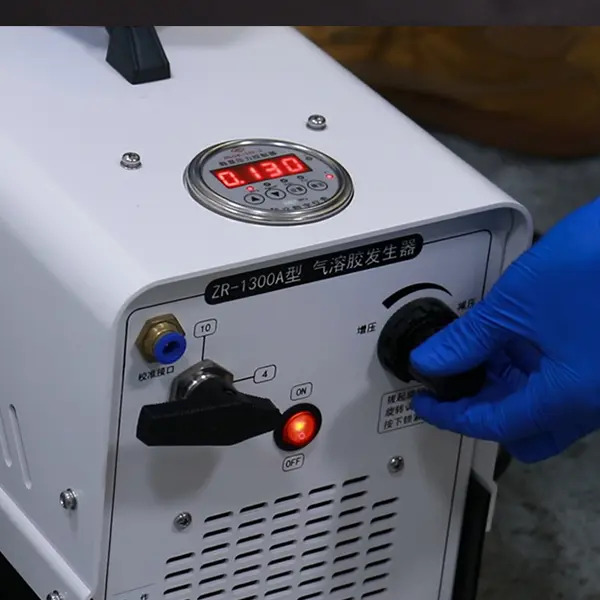

Junray ZR-1300A Aerosol Generator (0-600 kPa)

Working pressure: (0-600) kPa ±0.5 resolution 1kPa

Particle output range: (1.4-56.6) m3/min

Particle concentration:

100μg/L (air flow is 5.6 m3/min)

10μg/L(air flow is 56.6 m3/min)

Generating method: 4-10 Laskin nozzle

Compressed air: Embedded compressor

Air type: Multiple size of particles (Cold generating)

Dimension: (Length 200xWidth 500xHeight 280) mm

Noise: ＜65dB(A)

Weight: About 18Kg

Working power: AC110V/60Hz

Power consumption:＜500W

Standards

GB 50591-2010     Code for construction and acceptance of cleanroom

YY0569-2005         Biosafety cabinet

GB/T13554-2008   High efficiency particulate air filter

Features

Unique air channel design, stable air flow and balanced particle output.

Generate multiple kinds of aerosols, DOP, DOS, PAO….

Nebulizing concentration is adjustable in a wide range.
