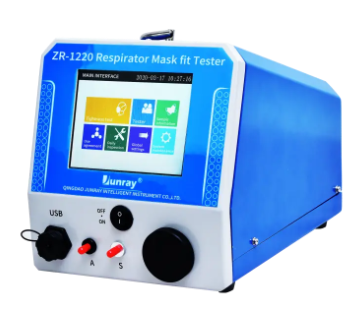

Junray ZR-1220 Respirator Fit tester (1L/min, ±5%)

Short Description:

ZR-1220 Respirator Fit tester is a special instrument for fit test of masks and respirators, which conform to OSHA and GB 19083-2010 technical requirements for medical masks. It is widely applicable to the relevant test and inspection of respirator products by respirator manufacturers and national labor protection equipment inspection institutions.

Specification

Fit factor: Range: 10,000-0, Maximum Permissible Error: ±10%

Flow: Range: 1L/min, Maximum Permissible Error: ±5%

Data storage capacity: 2000 groups (Extendable)

Alcohol type: 99.5% + Isopropyl alcohol

Power supply: AC220V±10%,50Hz

Working environment:(0~35)ºC,(0~95)%RH

Instrument noise: <65dB

Host size: (L480 × W543 × H918) mm (without bracket)

Introduction

ZR-1220 Respirator Fit tester is a special instrument for fit test of masks and respirators, which conform to OSHA and GB 19083-2010 technical requirements for medical masks. It is widely applicable to the relevant test and inspection of respirator products by respirator manufacturers and national labor protection equipment inspection institutions.

Video

Features

Condensation nucleus tester to ensure the detection accuracy.

Automatic cleaning of test chamber, automatic switch gas path, simple and fast.

Equipped with special laptop, convenient to operation.

Special upper machine software, convenient to data storage and analysis.

Build-in large capacity storage could save test results and process information.

Compatible to OSHA national standards and so on, and support customize test standard.

USB port supports transfer to USB flash disk and download test process file to USB flash disk.

Support printing by Bluetooth printer.
