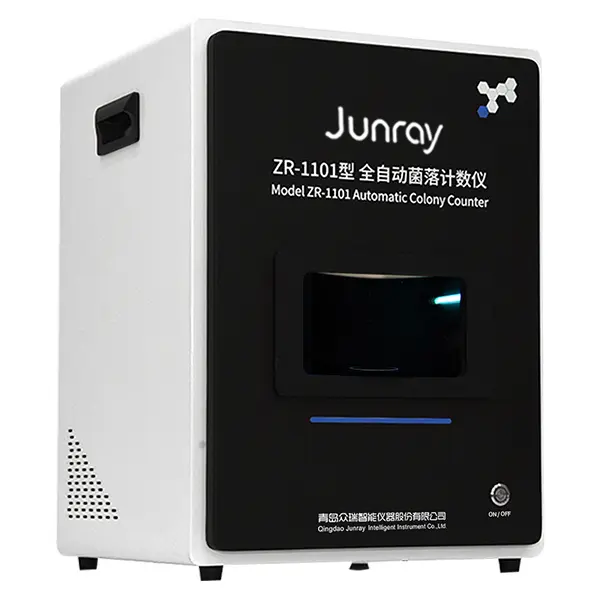

Junray ZR-1101 Automatic Colony Counter (12 megapixel, 0.05 mm)

Applications

Hospitals, scientific research institutions, health and anti-epidemic stations, and disease control centers.

Inspection and quarantine, quality and technical supervision, and environmental testing institutions.

Pharmaceutical, food and beverage, medical and health supplies industries.

Specification

CMOS: 12 million pixel，true color, resolution ratio: 4000x3036

Minimum size of detected colony: 0.05 mm

Counting speed: 1000 colonies <1s

Colour temperature: 3000K-7700K

Upper light source: Illumination: 51.7-985.1 Lux360° shadowless illumination, Multi-directional transmitted light, adjustable light source brightness.

Lower light source: Illumination: 0-4500 LuxBottom transmitted light darkroom shooting system

Sideview: Ring matrix system

Image capture:

- Auto focus, auto white balance, auto color temperature control.

- Front open, automatic elimination of external interference, automatic centering, black box shooting.

Petri dish type: various 90mm,100mm petri dishes (Pour, spreading, membrane filtration)

Automatic impurity removal: Automatically remove impurity according to the difference of shape, size, color, etc.

Colony Morphology Analysis: Automatic analysis the area, girth, roundness, maximum diameter, minimum diameter.

Select counting area: Basic circle, semicircle, circle, rectangle, sector, and random area.

Image processing:

- Image enhancement: Image ada­­ptive enhancement, color component enhancement, colony edge sharpening, image flattening.

- Image filtering: Low filter, high filter, Gaussian filter, Gaussian high through-put, mean filter, Gaussian filter, Order filter.

- Edge detection: Sobel detection, Roberts detection, Laplace detection, vertical detection, horizontal detection

- Image adjustment: Gray scale conversion, negative phase conversion, RGB three-channel brightness, Contrast, Gama adjustment

- Morphological operation: Erosion, dilation, opening operation, close operation

- Image segmentation: RGB segmentation, Gray scale segmentation

Note measurement:

- Instrument calibration: The system has its own calibration function

- Colony labeling: Label with Line, angle, rectangle, broken line, circle, character, curve and so on.

- Colony measurement: Measure line, angle, rectangle, circular arc, circle, section, curve and so on.

Work temperature: (0～35)℃

Host size: (L350×W398×H510)mm

Power consumption: ≤100W

Host weight: about 12.0kg

Power adaptor: Input AC100～240V 50/60Hz Output DC24V 2A

Features

 21 CFR Part 11 included

The software complies with FDA recommendations, particularly on audit trail and security of results.

The user account management, integrated in the software, allows the creation of up to 4 levels of rights. Password management secures user accounts.

• Fully enclosed multiple lighting

The cabin is completely closed to avoid external light interference, providing necessary light and shadow conditions for accurate colony counting.

Bulit-in 254nm and 365nm Ultraviolet lamp, can sterilize dishes and cabins, UV mutagenesis and fluorescence excitation experiments can also be realized.

Capture high-definition colonies quickly.

The operator does not tire his eyes.

• Accuracy and Repeatability

 ZR-1101 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 99%. The minimum colony size is 0.12 mm.

Realize polychromatic plate dyeing to identify colonies.

• Accurate segmentation and identification of adhesive colonies

• Scan code and print to standardize data record
