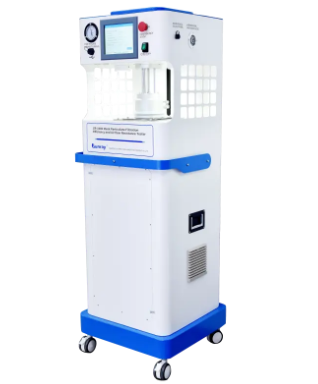

Junray ZR-1006 Mask Particulate Filtration Efficiency and Air flow Resistance Tester (8～100 L/min, 0～2500 Pa)

Median diameter of salt aerosol: Parameter Range: (0.075) μm, Resolution: /, Maximum Permissible Error: ±0.02

Median diameter of paraffin aerosol (Optional): Parameter Range: (0.185) μm, Resolution: /, Maximum Permissible Error: ±0.02

Test flow: Parameter Range: (8～100) L/min, Resolution: 0.1 L/min, Maximum Permissible Error: ±2.0%

Range of pressure detection: Parameter Range: (0～2500) Pa, Resolution: 0.1 Pa, Maximum Permissible Error: ±2.0%

Range of concentration detection: Parameter Range: (0.001-200) mg/m3, Resolution: 0.001 mg/m3

Precision of test: Parameter Range: /, Resolution: /, Maximum Permissible Error: 1%FS

Repeatability of test: Parameter Range: /, Resolution: /, Maximum Permissible Error: 2%

Operation temperature: 0~50℃

Instrument noise: <60 dB(A)

Power supply: AC 220 V±10%，50 Hz

Host size(L×W×H): (Length 550 × Width 550 × Height 1630) mm

Power consumption: <300 W

Weight of host: About 90 kg
