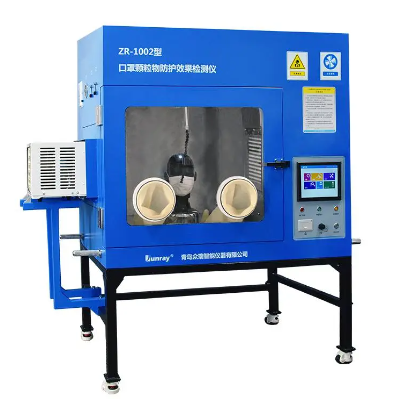

Junray ZR-1002 Mask particle protection effect tester (0.001~100μg/L, 1%)

Short Description:

The ZR-1002 mask particle protection effect tester is to test the particle protection effect of masks by installing the national standard head from in the 500L self-cleaning test cabinet, then wear the mask on the head from, and import the mass median diameter (0.6 ± 0.050) μm, concentration is 20mg / m³ of NaCl aerosol or mass median diameter (0.3 ± 0.050) μm, concentration is 20mg /m³ of oily aerosol into the self-cleaning test chamber, and the head form simulate breathing in sinusoidal curve, using upstream and downstream photometers to detect the concentration of salt aerosol and oil aerosol before and after the mask to evaluate the particle protective effect of the mask.

Specification:

Sampling flow rate for concentration detection: Parameter range: 1L/min, Resolution: 0.01L/min, MPE (Maximum Permissible Error): ±2.5%

Concentration detection range: (0.001~100)μg/L

Detection accuracy: 1%

Mass median diameter of salt aerosol: (0.6±0.05)μm

Mass median diameter of oil aerosol: (0.3±0.05)μm

Simulated breathing curve: Sine curve

Respiratory rate: 20 times / min

Respiratory tidal volume: 1.5L

Volume of self-cleaning cabinet: 500L

Self-cleaning time: (1~5)min

Breath resistance test flow: Parameter range: 85L/min, Resolution: 0.1L/min, MPE (Maximum Permissible Error): ±2.5%

Breat resistance test range: Parameter range: (0~1500)Pa, Resolution: 1Pa, MPE (Maximum Permissible Error): ±1%

Power supply: AC220V 50/60Hz

Host size: (Length 1900 × Width 800 × Height 1840) mm

Host power consumption: <300W

Host weight: About 200kg

Introduction

The ZR-1002 mask particle protection effect tester is to test the particle protection effect of masks by installing the national standard head from in the 500L self-cleaning test cabinet, then wear the mask on the head from, and import the mass median diameter  (0.6 ± 0.050) μm, concentration is 20mg / m³ of NaCl aerosol or mass median diameter (0.3 ± 0.050) μm, concentration is 20mg /m³ of oily aerosol into the self-cleaning test chamber, and the head form simulate breathing in sinusoidal curve, using upstream and downstream photometers to detect the concentration of salt aerosol and oil aerosol before and after the mask to evaluate the particle protective effect of the mask. The mask to be tested also can be worn on the national standard head form to automatically test the breathing resistance. It is suitable for the test of the particle protective effect of masks and filter materials by medical device inspection centers, disease prevention and control centers, hospitals, HEPA filter manufacturers, mask R&D manufacturers.

Standards

GB/T 32610-2016

GB2626-2019

GB/T 6165-2008

GB/T 38880-2020

Features

The integrated design of the particle protective effect test and breath resistance test, one machine for multiple purposes.

Self-cleaning test cabinet is equipped with operating gloves to facilitate the replacement of masks to be tested.

Three types of head form compatibility design, plug and play, easy to replace.

The external salt and oil aerosol generator can be controlled to adjust the concentration of particulate matter.

Large touch display design, automatically display curve of breath flow and automatic calculation of particle protection effect.

The anti-leakage design of the whole particulate matter to protect the safety of laboratory personnel.

Photometer has a long-life laser light source, detect with high-precision photomultiplier tube.

Count photometer working time, automatically prompt cleaning time.

The usage time of the HEPA filter is automatically counted, prompting to replace the HEPA filter.

Historical data can be exported via USB flash disk or printed via embedded printer.
