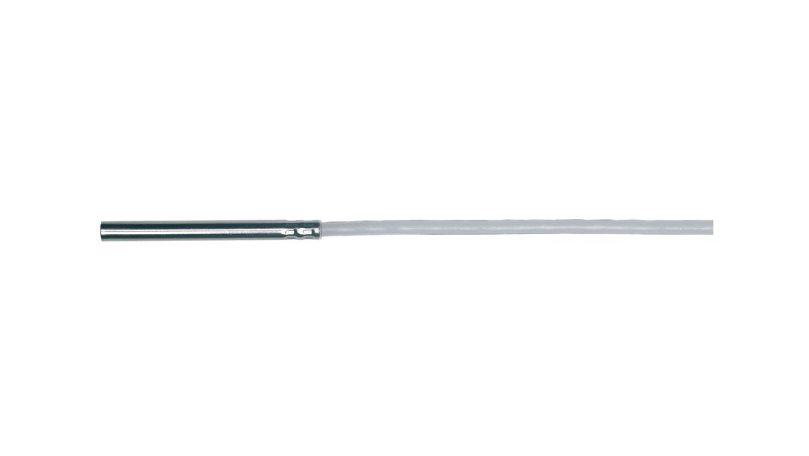

Jumo STEAMtemp Push-in RTD temperature probe (steam-tight) (-50 ~ +150°C, Sales no.: 90/00306448)

Order code: 902830/10-370-1011-2-6-100-11-2500/317

Operating temperature in °C: -50 to +150°C / PTFE connecting cable

Measuring insert: 1 x Pt100 in 4-wire circuit

Tolerance class to EN 60 751: Class A

Protection tube diameter D in mm: 6mm

Fitting length EL in mm (50 ≤ EL ≤ 500): 100mm

Connecting cable end: ferrules to DIN 46 228 Part 4 (standard)

Connecting cable length AL in mm (500 ≤ AL ≤ 500000): 2500mm (standard)

Extra codes: shielded connecting cable

Push-in RTD temperature probes are predominantly used for temperature measurement in sterilizers. Their special design permits applications in a pressurized atmosphere containing steam. Additional application areas include apparatus and laboratory engineering.
