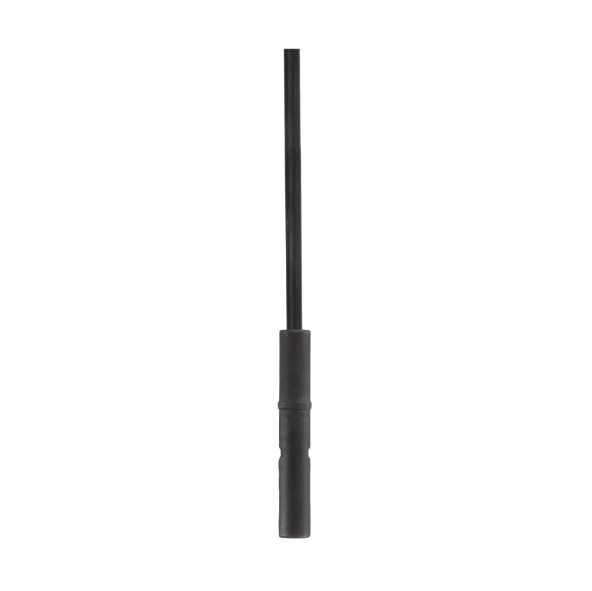

Jumo plastoSENS T03 Steam-tight plastic temperature probe (0 ~ 150°C)

Order code: 904003/10-824-2005-2-11-2500/000

Operating temperature in °C: 0 to 150 °C

Measuring insert: 2× Pt1000 in 2-wire circuit (standard)

Tolerance class according to DIN EN 60751:2009 / IEC 60751:2008: Class A

Connecting cable end: Ferrules

Connecting cable length AL in mm (AL 500 to 10000 mm): 2500 mm

Extra codes: None

The JUMO plastoSENS T03 solves the problem of insufficient leak-tightness from conventional probes. Since the special plastics used in the injection molding process form an adhesive bond, it is completely sealed, even at the critical point of the cable outlet – ideal for sterilization applications.
