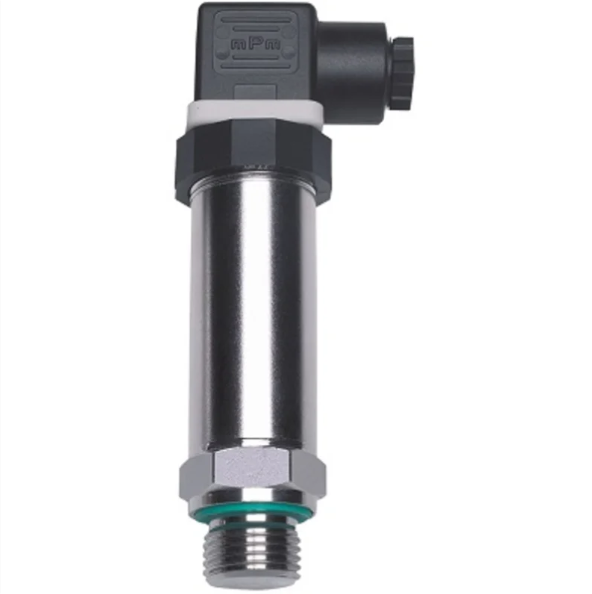

Jumo MIDAS SI pressure transmitter (0 ~ 1 bar relative pressure)

Order code: 401006/000-454-405-523-20-11/000

Input: 0 to 1 bar relative pressure

Output: 4 to 20 mA, two-wire

Process connection: G 1/2, DIN 3852-11

Process connection material: CrNi (stainless steel)

Electrical connection: Attached cable (standard cable length is 2 m, further lengths available upon request)

Extra code: None

This pressure transmitter acquires the relative and absolute pressure of gaseous and liquid media and transforms it into an electrical signal. One of the application areas in which it is used is aggressive media.
