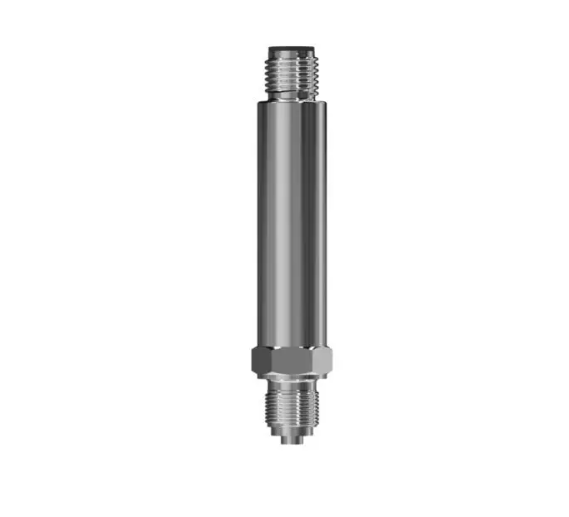

Jumo MIDAS S22 Ex Miniature pressure transmitter for Ex areas JUMO MIDAS S22 Ex (0 ~ 10 bar relative pressure)

Order code: 404720/000-459-405-502-20-11/000

Basic type extension: None

Input: 0 to 10 bar relative pressure

Output: 4 to 20 mA, 2-wire

Process connection: G 1/4 DIN EN 837

Process connection material: CrNi (stainless steel)

Electrical connection: Attached cable, blue

Extra codes: None

The miniature pressure transmitter measures the relative and absolute pressure of gases, steam, and liquids based on the piezoresistive measuring principle. It is completely welded and is particularly suitable for use in explosion-proof areas. Including oil, fuel, or gas plants.
