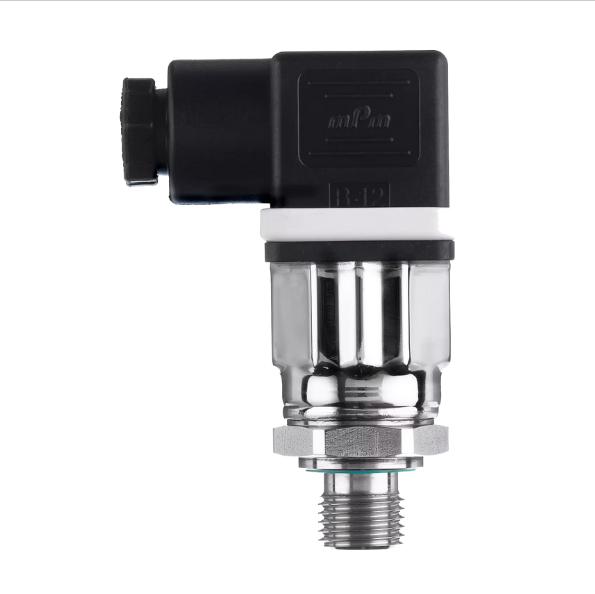

Jumo MIDAS S06 pressure transmitter for low pressure applications (0 ~0.25 bar, Part No.: 00547882)

Order code: 401011/000-451-405-504-20-61/000

Input: 0 to 0.25 bar relative pressure

Output: 4 to 20 mA, two-wire

Process connection: G 1/2 according to DIN EN 837

Process connection material: CrNi (stainless steel)

Electrical connection: Line socket DIN EN 175301-803, Form A

Extra codes: None

This pressure transmitter is completely welded and designed for use in harsh conditions. It can also be used for level measurement. The applied silicon sensor is extremely resilient.

Datasheet
