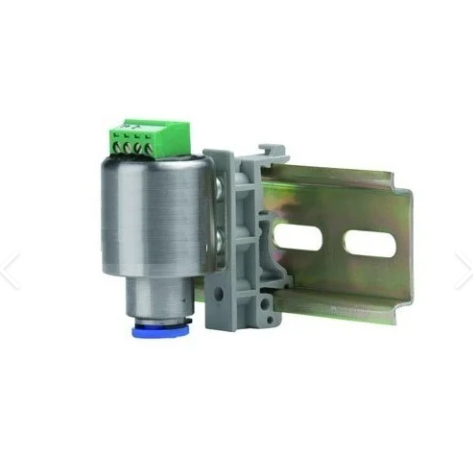

Jumo MIDAS DR Pressure transmitter for control cabinet mounting (0 ~ 10 bar)

Order code: 401009/000-459-405-383-20-601-06/000

Basic type extensions: None

Input for gauge pressure: 0 to 10 bar

Output: 4 to 20 mA, 2-wire

Process connection: DN6 pluggable screwed gland for pipe/hose 6x4, DN6

Housing material: Stainless steel

Seal material: FPM

Electrical connection: 4-pole terminal block

Extra codes: None

This pressure transmitter is the plant control cabinet variant of the basic JUMO MIDAS product. It acquires the relative pressure of liquid as well as gaseous media and transforms it into an electrical signal.
