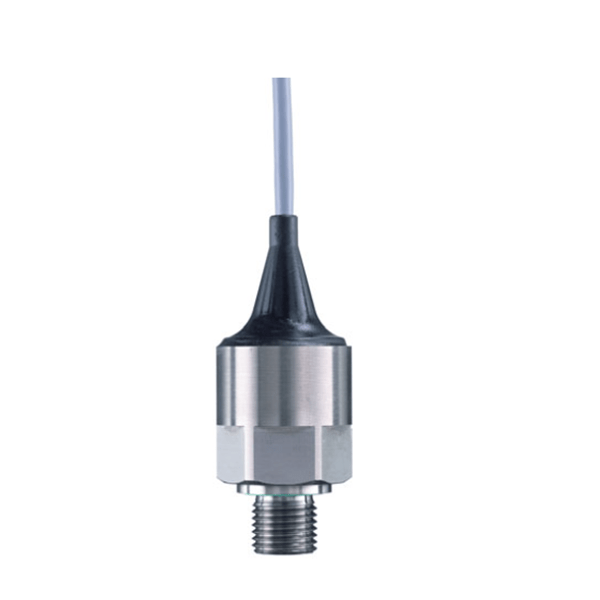

Jumo MIDAS C18 SW pressure transmitter for seawater applications (0 ~16 bar relative pressure)

Order code: 401012/000-460-405-521-60-601-11/630

Basic type extension: None

Input: 0 bar to 16 bar relative pressure

Output: 4 mA to 20 mA, two-wire

Process connection: G 1/4 DIN 3852-11

Process connection material: Ti (Titanium)

Material seal: FPM

Electrical connection: Attached cable, 2 m (other lengths upon request)

Extra codes: Enlarged pressure channel

This pressure transmitter features a hysteresis-free ceramic measuring cell and a titanium case. This protects it against organic acids and solutions containing chloride. It is used in particular in ship building and laboratory engineering.
